LABURRA

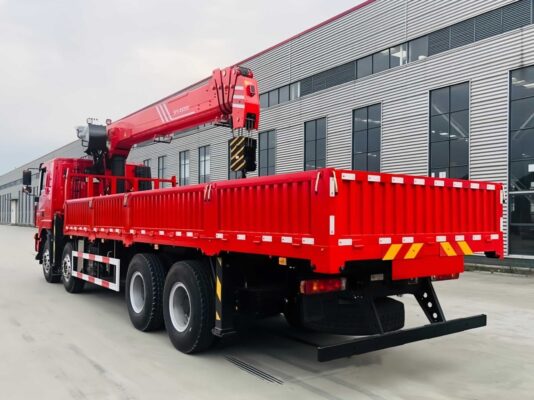

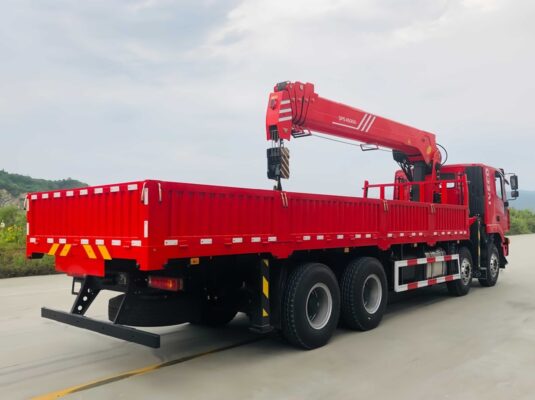

The 12-wheelers kamioi garabi teleskopikoa ekoiztua CSCTRUCK Garabia is a robust and versatile piece of heavy machinery designed for substantial lifting tasks. This crane boasts a rated lifting moment of 45 metric tons and can lift to 18,000 kilograms at a radius of 2.5 metroak. It features a maximum outreach of 18.6 meters and utilizes 6 maximum lines on the hook for efficient load handling.
A key feature of this kamioi garabi teleskopikoa is its continuous slewing capability, allowing for 360-degree rotation, which enhances maneuverability and operational flexibility. The boom can be raised from 0 to 75 degrees, offering a maximum lifting height of 21.5 metroak. The crane’s boom comprises 5 atalak, with a basic boom length of 6.23 meters that extends to 19 meters when fully deployed.
Stability is assured with a fully extended outrigger span of 7.25 metroak, crucial for maintaining balance during heavy lifts. The hydraulic system of the crane is engineered for high performance, with a recommended operating pressure of 32 MPa and a system volume of 100 liters per minute. Gainera, the crane requires a 300-liter oil tank capacity to ensure smooth and continuous operation.
Orokorrean, du CSCTRUCK Garabia 12-wheeler kamioi garabi teleskopikoa is a powerful and reliable machine suitable for a variety of lifting applications in construction, logistika, and other industrial sectors. Its advanced features and robust construction make it a valuable asset for heavy-duty lifting operations.
EZAUGARRIAK
1. High Lifting Capacity and Reach:
– Jasotzeko ahalmen baloratua: 18,000 kg at 2.5 metroak.
– Maximum lifting height: 21.5 metroak.
– Maximum outreach: 18.6 metroak.
2. Boom Specifications:
– 5-section boom with a basic length of 6.23 metroak.
– Fully extended boom length: 19 metroak.
– Boom raising angle range: 0° to 75°.
3. Efficient Hydraulic System:
– Recommended system volume: 100 liters per minute.
– Operating pressure: 32 MPa.
– Oil tank capacity: 300 liters.
4. Stability and Support:
– Fully extended outrigger span: 7.25 metroak.
– Designed to provide stable support during lifting operations.
5. Operational Versatility:
– 45-metric-ton rated lifting moment.
– 6 maximum lines of the hook.
– Continuous slewing angle for all rotations, allowing for flexible and efficient positioning.
ZEHATZA
| Oinarrizko datuak | CSCTTC1805-1 |
| Altxatze momentu baloratua | 45 mt |
| Jasotzeko ahalmen baloratua | 18,000 kg (2.5 m) |
| Max. outreach | 18.6 m |
| Max. lines of the hook | 6 |
| Slewing angle – continuous | All Rotation |
| Boom raising angle | 0~75° |
| Max. altxatze altuera – the measurement from the ground after the outriggers fully extended | 21.5 m |
| Length of the basic boom | 6.23 m |
| Length of fully extended boom | 19 m |
| Boom sections | 5 |
| Outrigger span – fully extended | 7.25 m |
| Recommended volume for the system | 100 L/min |
| Operating pressure | 32 Mpa |
| Recommended oil tank capacity | 300 L |
