LABURRA

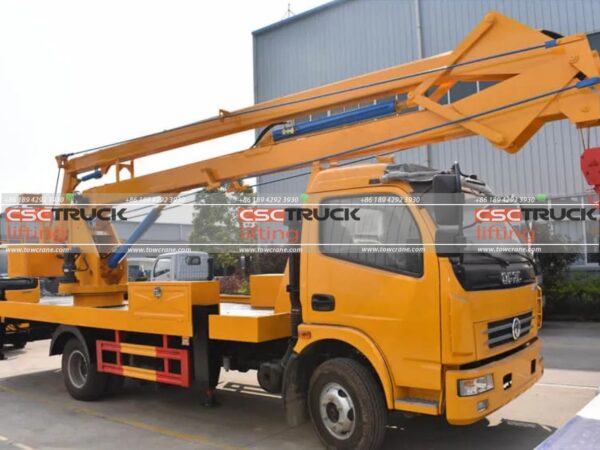

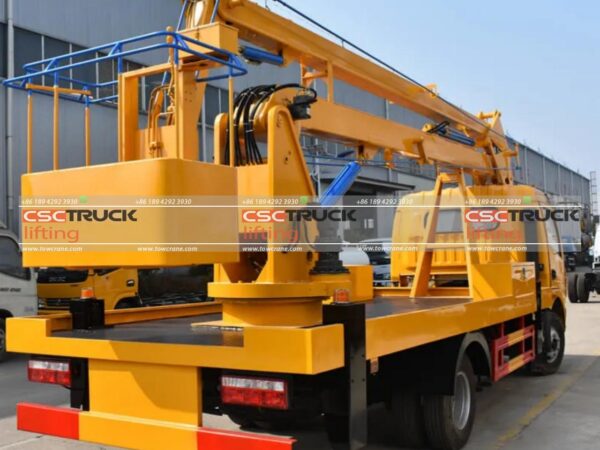

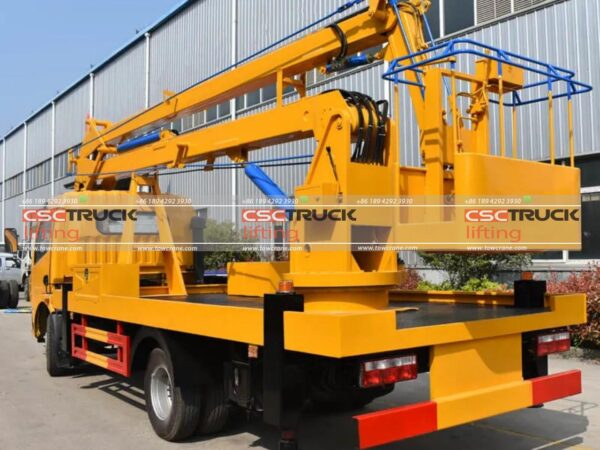

The 16m articulated bucket lift truck ekoiztua CSCTRUCK Garabia is a versatile and efficient piece of machinery designed for various elevated work applications. Built on the robust Dongfeng chassis, this lift truck features a 4×2 disko mota, ensuring stable and reliable performance on a variety of terrains. The heart of this machine is the CY4SK251 engine model, which delivers a powerful 156 horsepower, meeting the stringent Euro 5 emission standards for an environmentally friendly operation.
One of the standout features of this articulated bucket lift truck is its impressive 16-meter maximum working height, making it suitable for tasks that require significant elevation, such as maintenance of streetlights, tree trimming, and building inspections. The 16-meter articulated boom provides excellent maneuverability, allowing operators to reach difficult areas with ease.
With a maximum lifting weight of 1,000 kilograms, this lift truck is capable of handling substantial loads, making it a valuable asset for heavy-duty tasks. The maximum speed of 103 kilometers per hour enhances its mobility, enabling quick transportation to job sites and efficient project completion.
Safety and efficiency are prioritized in the design of this bucket lift truck, ensuring that it meets the demands of modern work environments. Whether used in urban settings or more rugged locations, du CSCTRUCK Garabia‘s articulated bucket lift truck combines power, precision, and reliability, making it an indispensable tool for professionals in various industries.
EZAUGARRIAK
1. High Working Height: The truck is designed with a maximum working height of 16 metroak, making it suitable for tasks that require significant elevation.
2. Powerful Engine: Equipped with the CY4SK251 engine model, it boasts a power output of 156 horsepower, ensuring robust performance for various lifting and towing operations.
3. Efficient Emissions: The truck complies with the Euro 5 emission standard, providing an environmentally friendly option with reduced emissions.
4. Substantial Lifting Capacity: It has a maximum lifting weight capacity of 1,000 kilograms, allowing it to handle heavy loads efficiently.
5. Speed and Mobility: Built on a Dongfeng chassis with a 4×2 disko mota, the truck can reach a maximum speed of 103 kilometers per hour, ensuring timely transportation and operational efficiency.
ZEHATZA
16m Articulated Bucket Lift Truck |
|||
| Product Name | 16m Articulated Bucket Lift Truck | Product Model NO. | CSCABLT016 |
| Function | High altitude Operation | ||
General Situation of Vehicle |
|||
| Overall Dimension(MM) | 8,100×2,320×3,350 | Curb Weight(Vehicle) (KG) | 7,640 |
| Dimension of Loading Space (MM) | / | Loading Capacity(KG ) | 200 |
| GVW. (KG) | 7,835 | Fuel Type | Diesel |
| Transmission Type | Manual | Condition | New |
| Maximum Speed (KM/H) | 103 | Cab | 3 Persons |
Chassis Specification |
|||
| Chassis Brand | Dongfeng | Chassis Model NO. | EQ1080SJ8BDC |
| Driver’s Seat Direction | Left Side Drive | Drive Form | 4×2 |
| Steering System | Steering wheel | Brake System | Air braking |
| Gear Box | 5-Speed | ABS | Include |
| Electric System | 24V | Axle Load(KG) | 3,300/4,975 |
| NO. of Axles | 2 | Tyres Specification | 7.50R16 |
| Wheel Base(MM) | 3,800 | NO. of Wheels | 6 |
| Overhang F/R (MM) | 1130/2460 | NO. of Spring Leaf | |
Engine Specification |
|||
| Engine Model NO. | CY4SK251 | Engine Power (KW/HP) | 115/156 |
| Displacement(ML) | 3,856 | Emission level | Euro 5 EGR |
| Upper Body Configuration | Main Material: Carbon steel Q235,
Upper Body And Chassis Connection Way: Weld and bolt connection, Max.Working Height: 16M, Max Working Radius: 9M, 360° rotation, Prop Leg Max.Span : Lengthways: 2,430MM; Crosswise: front 1,600MM, Rear: 2,780MM, adjustable; Load of Aerial Working Platform: ≤200 KG, Dimension of Aerial Working Platform: 1,080X610X1,100MM |
||
| Product Feature | 1. Three Foldable arms, arms are electrically controlled, speed is adjustable;
2. Hydraulic Cylinders control the boom arm stretching, lifting, or retracting, and can be lockable; 3. Double station operation, up and down interlock; 4. Engine start and stop can be remotely controlled; 5. Crane hook can be mounted if required, Max. Lifting Height: 11.5M, |
||
