LABURRA
The HINO 20-ton knuckle boom crane ekoiztua CSCTRUCK Garabia is a robust and versatile lifting solution designed for heavy-duty applications. Mounted on an 8×4 drive-type chassis, this crane offers excellent stability and maneuverability, making it suitable for various challenging environments. The crane features 4 hydraulic boom extensions, providing a maximum hydraulic outreach of 11.5 metroak, which allows it to handle a wide range of tasks with precision.
With a lifting moment of 53.9 metric tons, du HINO 20-ton knuckle boom crane can lift loads to 19,500 kilograms, demonstrating its impressive strength and capability. The crane’s slewing mechanism offers a 370° rotation angle, providing flexibility in operation and allowing it to work efficiently in confined spaces. The slewing torque of 6.5 metric tons ensures smooth and controlled movements during operation.
The hydraulic system of the crane operates at a pressure of 33Mpa and is supported by a pump with a capacity of 60-80 liters per minute, ensuring consistent and powerful performance. This advanced hydraulic system allows for precise control and efficient energy usage, contributing to the crane’s overall reliability and effectiveness.
Weighing in at 5,641 kilograms, the standard crane configuration is designed to be durable yet manageable, allowing for easier transport and setup. The HINO 20-ton knuckle boom crane arabera CSCTRUCK Garabia is an excellent choice for industries requiring heavy lifting and precise material handling, combining strength, versatility, and advanced hydraulic technology to meet demanding operational needs.
EZAUGARRIAK
1. Igotzeko ahalmen eta irismen ikusgarria:
– The crane boasts a maximum lifting capacity of 19,500kg, making it capable of handling heavy loads efficiently.
– It features 4 hydraulic boom extensions, providing a maximum hydraulic outreach of 11.5 metroak, which is suitable for various lifting operations.
2. High Lifting Moment:
– The crane has a lifting moment of 53.9mt, which indicates its ability to lift heavy loads at extended distances from the base, showcasing its strength and versatility.
3. Advanced Hydraulic System:
– Equipped with a pump capacity of 60-80 liters per minute and an operating pressure of 33Mpa, the crane ensures efficient and powerful hydraulic performance for smooth and effective lifting operations.
4. Extensive Slewing Capability:
– The crane features a 370° slewing angle and a slewing torque of 6.5mt, providing excellent maneuverability and flexibility in positioning and handling loads in a wide range of directions.
5. Robust and Durable Construction:
– With a standard crane weight of 5,641kg, the crane is built to be robust and durable, ensuring stability and longevity in various operational environments. Gainera, the 8×4 drive type enhances its mobility and stability on different terrains.
ZEHATZA
| Item | Unit | CSCKBC55502C | CSCKBC55502D | CSCKBC55502E |
| Hydr. boom extensions | / | 4 | 5 | 6 |
| Lifting moment | mt | 53.9 | 53.9 | 53.9 |
| Max. lifting capacity | kg | 19,500 | 18,600 | 18,000 |
| Max. hydraulic outreach | m | 11.5 | 13.7 | 15.9 |
| Slewing angle | ° | 370 | 370 | 370 |
| Slewing torque | mt | 6.5 | 6.5 | 6.5 |
| Pump capacity | L/min | 60-80 | 60-80 | 60-80 |
| Operating pressure | Mpa | 33 | 33 | 33 |
| Standard crane weight | kg | 5,641 | 5,783 | 6,020 |

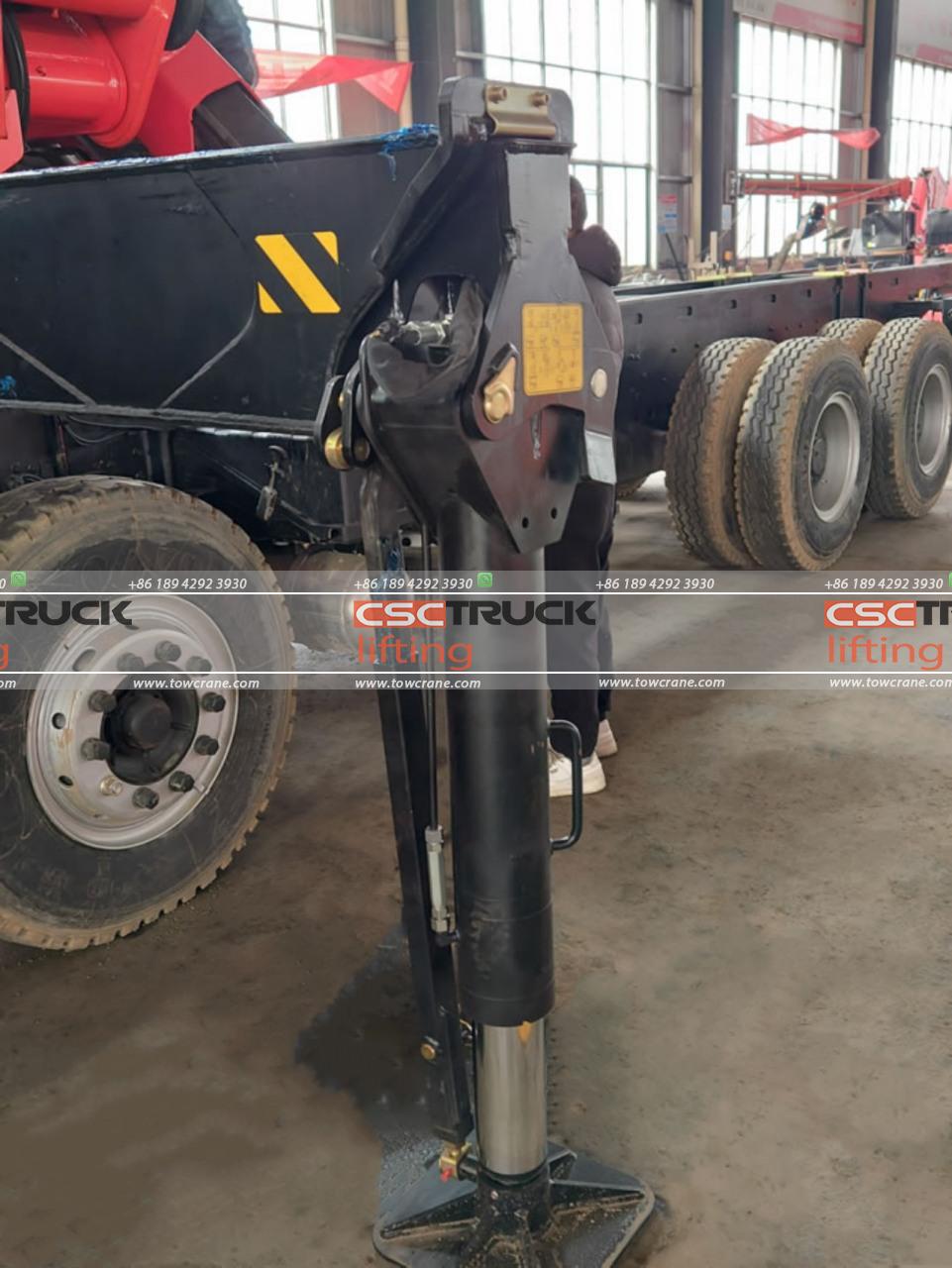

| Outrigger span(mm) | R3X-STZS3 | 7,400 | 7,400 | 7,400 |
| R3X-STZY | 7,413 | 7,413 | 7,413 |
