BRIEF

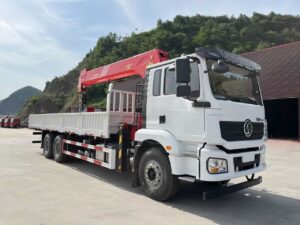

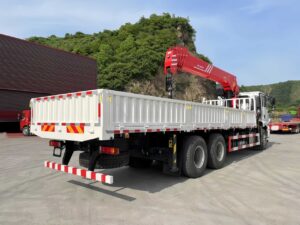

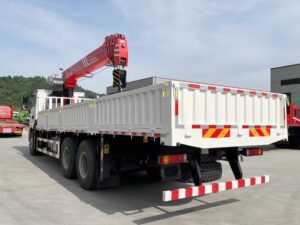

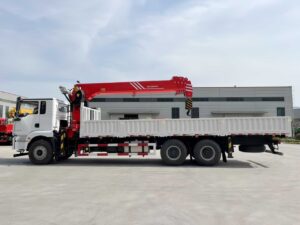

The SHACMAN 14-ton truck telescopic crane, produced by CSCTRUCK Tow Crane, is a robust and versatile lifting machine designed for heavy-duty applications. This crane boasts a 35 mt rated lifting moment and an impressive rated lifting capacity of 14,000 kg at a 2.5-meter radius. It features an extensive maximum reach of 18.1 meters and a lifting height of up to 20.5 meters, making it suitable for a wide range of construction and industrial tasks.
Equipped with a 5-section boom, the crane’s basic boom length is 5.6 meters, which can extend fully to 18.5 meters. The boom raising angle ranges from 0 to 75 degrees, allowing for precise and versatile positioning of loads. The fully extended outrigger span of 7,250 mm ensures stability and safety during operation.
The שאקמן truck telescopic crane crane also supports continuous 360-degree rotation, enhancing its operational flexibility. The crane’s hook can accommodate up to 6 lines, further contributing to its lifting efficiency and capacity.
For optimal hydraulic performance, the system operates at a recommended volume of 100 liters per minute, with an operating pressure of 29/32 MPa. The crane is equipped with a 200-liter oil tank, ensuring sustained hydraulic power during extended use.
Overall, the SHACMAN 14-ton truck telescopic crane is engineered for reliability and high performance, meeting the demanding needs of various heavy-lifting tasks. Its combination of extensive reach, significant lifting capacity, and robust hydraulic system makes it a valuable asset in the construction and industrial sectors.
FEATURES
1. High Lifting Capacity and Reach:
– Rated Lifting Capacity: Can lift 14,000 kg at a 2.5-meter distance.
– Max. Lifting Height: Reaches up to 20.5 meters.
– Max. Reach: Extends up to 18.1 meters.
2. Boom Specifications:
– Boom Sections: Comprises 5 sections.
– Basic Boom Length: Measures 5.6 meters.
– Fully Extended Boom Length: Reaches 18.5 meters.
– Boom Raising Angle: Adjustable from 0° to 75°.
3. Slewing and Stability:
– Slewing Angle: Features continuous all-rotation slewing for flexible positioning.
– Outrigger Span: Fully extends to 7,250 mm to provide stable support during operations.
4. Hydraulic System:
– Operating Pressure: Functions at an operating pressure of 29/32 MPa.
– Oil Tank Capacity: Holds up to 200 liters of oil.
– Recommended Volume: System designed for a flow rate of 100 liters per minute.
5. Hook and Lines:
– Max. Lines of the Hook: Supports up to 6 lines for versatile lifting applications.
– Rated Lifting Moment: Provides a powerful lifting moment rated at 35 metric tons (mt).
SPECIFICATION
| Basic data | CSCTTC1404 | CSCTTC1405 |
| Rated lifting moment | 35 mt | 35 mt |
| Rated lifting capacity | 14,000 kg (2.5 m) | 14,000 kg (2.5 m) |
| Max. outreach | 15 m | 18.1 m |
| Max. lines of the hook | 6 | 6 |
| Slewing angle (continuous) | All Rotation | All Rotation |
| Boom raising angle | 0~75° | 0~75° |
| Max. lifting height (the measurement from the ground after the outriggers are fully extended) | 17.1 m | 20.5 m |
| Length of the basic boom | 5.5 m | 5.6 m |
| Length of fully extended boom | 15.4 m | 18.5 m |
| Boom sections | 4 | 5 |
| Outrigger span (fully extended) | 6,000 mm | 7,250 mm |
| Recommended volume for the system | 100 L/min | 100 L/min |
| Operating pressure | 29/32 Mpa | 29/32 Mpa |
| Oil tank capacity | 200 L | 200 L |
