အကျဉ်းချုပ်

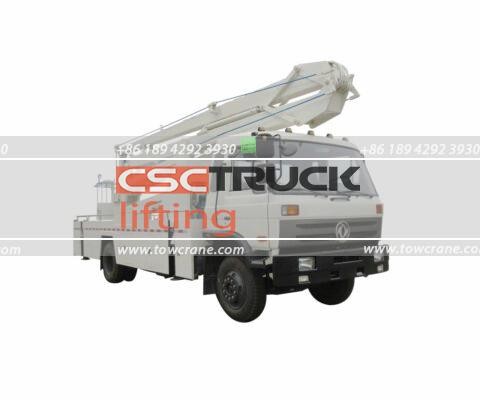

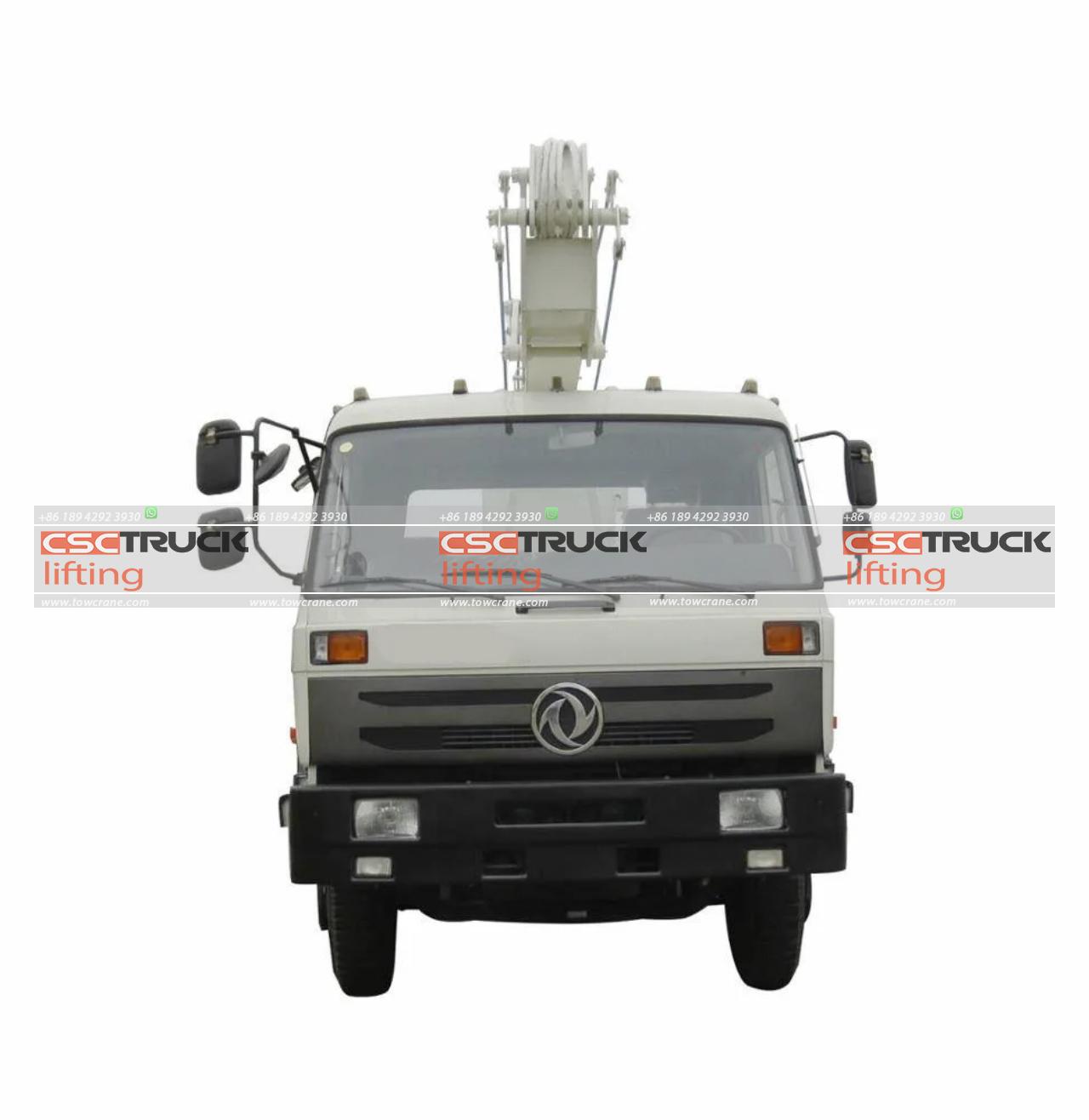

ဟိ 24ဍ articulated bucket lift truck မှထုတ်လုပ်သည် CSCTRUCK Tow Crane is a versatile and robust vehicle designed for high-reach tasks. This truck features a maximum working height of 24 မီတာ, making it suitable for various applications such as utility maintenance, construction, and tree trimming. ခိုင်ခံ့သော အပေါ်တွင် တည်ဆောက်ထားသည်။ Dongfeng chassis with a 4×2 drive အမျိုးအစား, it ensures reliable performance and stability across different terrains.
Under the hood, the truck is powered by a Cummins engine, known for its durability and efficiency. The engine delivers 190 မြင်းကောင်ရေ, providing ample power for both lifting and driving tasks. It meets the Euro III emission standard, reflecting a commitment to environmental considerations and compliance with emission regulations.
ဟိ 24m articulated bucket lift truck‘s lifting mechanism can handle a maximum weight of 200 ကီလိုဂရမ်, making it suitable for lifting personnel and light equipment. The articulated design of the bucket lift allows for flexible positioning and maneuverability, enhancing the truck’s ability to perform in tight or complex spaces.
ထို့ အပြင်, the vehicle boasts a maximum speed of 80 ကီလိုမီတာ/နာရီ, allowing it to travel efficiently between job sites. This speed, combined with its robust engine and efficient design, makes it an excellent choice for companies needing a reliable, high-performance lift truck for various high-altitude tasks.
ခြုံ, အဆိုပါ 24m articulated bucket lift truck အားဖြင့် CSCTRUCK Tow Crane is a powerful and efficient solution for industries requiring elevated work capabilities, offering a blend of performance, ဘေးကင်းရေး, and environmental compliance.
အင်္ဂါရပ်များ
1. High Working Height: The truck offers a maximum working height of 24 မီတာ, making it suitable for a variety of high-altitude maintenance and installation tasks.
2. Robust Engine Performance: Powered by a 190HP Cummins engine, the truck provides reliable performance with sufficient power for both driving and lifting operations.
3. Modern Emission Standards: Equipped with a Euro III emission standard engine, the truck meets contemporary environmental regulations, ensuring reduced emissions and environmental impact.
4. Durable Chassis and Drive Configuration: Built on a Dongfeng chassis with a 4×2 drive အမျိုးအစား, the truck ensures durability and stable handling, suitable for various road conditions.
5. Efficient Lifting Capacity and Speed: With a maximum lifting weight of 200 kg and a maximum speed of 80km/h, the truck balances between efficient load handling and swift mobility, လုပ်ငန်းဆောင်ရွက်မှု စွမ်းဆောင်ရည်ကို မြှင့်တင်ခြင်း။.
သတ်မှတ်ချက်
24မီတာ articulated ပုံးဓာတ်လှေကားထရပ်ကား |
||
| အထွေထွေ | Vehicle Brand | CSCTRUCK Tow Crane |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 9,600×2,500×3,620 မီလီမီတာ | |
| GVW / Kerb Weight | 15,825kg/15,500kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | The air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 190Ps(40kW) | |
| Displacement | 5,900ml | |
| Emission Standard | Euro III | |
| ကိုယ်ထည် | Drive အမျိုးအစား | 4X2, left or right-hand drive |
| Transmission | 6-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4,700mm/2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 80ကီလိုမီတာ/နာရီ | |
| Paint | Metallic paint | |
| Superstructure | Working Cage | 200kg capacity, anti-slip floor |
| Working Height | ≤24M | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| An emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at the base and operator’s cage. | ||
| Optional | A hoist hook with cables can be equipped for the function of a crane. | |
