အကျဉ်းချုပ်

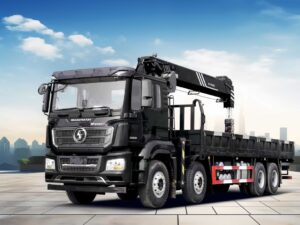

ဟိ SHACMAN M3000 truck telescopic crane, produced by CSCTRUCK Tow Crane, is a robust and versatile lifting machine designed for demanding tasks. Featuring an 8×4 drive အမျိုးအစား, this crane ensures excellent stability and maneuverability on various terrains. It boasts a substantial rated lifting moment of 35 metric tonnes(mt) and can handle a rated lifting capacity of 14,000 kilograms at a 2.5-meter outreach, making it suitable for heavy-duty operations.
With a maximum outreach of 18.1 မီတာ, အဆိုပါ SHACMAN M3000 can extend its capabilities to significant distances, facilitated by its 5 boom sections. The crane’s boom can be raised from 0 ရန် 75 ဒီဂရီ, reaching a maximum lifting height of 20.5 မီတာ. The basic boom length is 5.6 မီတာ, which can be fully extended to 18.5 မီတာ, allowing for flexible lifting solutions.
ဟိ truck telescopic crane is equipped with a fully extended outrigger span of 7,250 millimeters, enhancing stability during operations. It also features an all-rotation continuous slewing angle, providing seamless 360-degree rotation for precise placement of loads. The hook can handle up to 6 lines, increasing lifting efficiency.
The hydraulic system of the SHACMAN M3000 is designed for high performance, with a recommended volume of 100 liters per minute and operating pressure ranges of 29/32Mpa. The oil tank has a capacity of 200 liters, ensuring sustained operation without frequent refills.
ခြုံ, အဆိုပါ SHACMAN M3000 truck telescopic crane အားဖြင့် CSCTRUCK Tow Crane is a highly capable and reliable piece of equipment, ideal for various lifting and construction applications.
အင်္ဂါရပ်များ
1. High Lifting Capacity and Reach: The crane has a rated lifting capacity of 14,000 kg at a 2.5-meter radius and a maximum outreach of 18.1 မီတာ, making it suitable for heavy lifting tasks over considerable distances.
2. Advanced Boom Configuration: It features a 5-section boom with a basic length of 5.6 meters and a fully extended length of 18.5 မီတာ. The boom can be raised from 0° to 75°, providing flexibility in handling various lifting operations.
3. Robust Lifting Mechanism: The crane boasts a rated lifting moment of 35 မက်ထရစ်တန် (mt) and can achieve a maximum lifting height of 20.5 မီတာ, supported by a maximum of 6 lines on the hook for enhanced lifting stability and strength.
4. ထိရောက်သော ဟိုက်ဒရောလစ်စနစ်: The hydraulic system operates at an optimal pressure of 29/32 Mpa, with a recommended volume of 100 တစ်မိနစ်ကို လီတာ။, ensuring smooth and powerful crane operations. It also features a large 200-liter oil tank capacity for extended operation without frequent refueling.
5. Stability and Control: The crane is equipped with a fully extended outrigger span of 7,250 မီလီမီတာ, providing excellent stability during lifting operations. It also offers continuous 360-degree rotation for precise positioning and improved maneuverability on job sites.
သတ်မှတ်ချက်
| Basic data | CSCTTC1404-2 | CSCTTC1405-2 |
| Rated lifting moment | 35 mt | 35 mt |
| Rated lifting capacity | 14,000 ကီလိုဂရမ် (2.5 ဍ) | 14,000 ကီလိုဂရမ် (2.5 ဍ) |
| မက်တယ်။. outreach | 15 ဍ | 18.1 ဍ |
| မက်တယ်။. lines of the hook | 6 | 6 |
| Slewing ထောင့် (continuous) | All Rotation | All Rotation |
| Boom raising angle | 0~75° | 0~75° |
| မက်တယ်။. lifting height (the measurement from the ground after the outriggers are fully extended) | 17.1 ဍ | 20.5 ဍ |
| Length of the basic boom | 5.5 ဍ | 5.6 ဍ |
| Length of fully extended boom | 15.4 ဍ | 18.5 ဍ |
| Boom sections | 4 | 5 |
| Outrigger ထွာ (fully extended) | 6,000 မီလီမီတာ | 7,250 မီလီမီတာ |
| Recommended volume for the system | 100 လီ/မိနစ် | 100 လီ/မိနစ် |
| လည်ပတ်ဖိအား | 29/32 Mpa | 29/32 Mpa |
| Oil tank capacity | 200 L | 200 L |
