KRÓTKI:

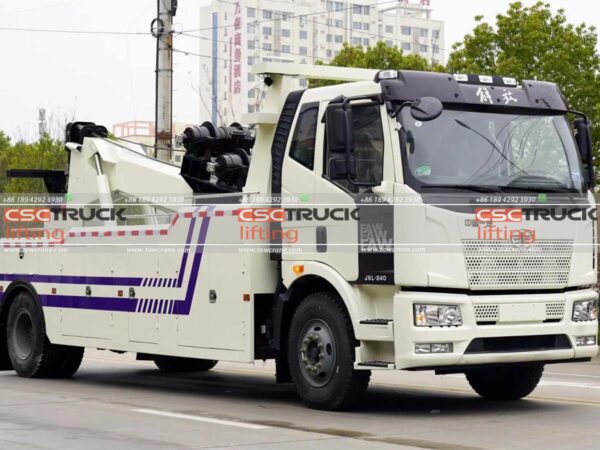

The FAW 20 Ton Emergency Recovery Integrated Tow Truck is a highly efficient and versatile vehicle designed for emergency recovery and towing operations. It combines powerful performance, a well-equipped cabin, and advanced recovery equipment to handle various emergency scenarios. With a focus on safety and reliability, this tow truck is an indispensable asset in the world of rescue and recovery.
The integrated tow truck is a reliable and powerful vehicle that stands ready to provide effective assistance during emergency recovery operations, offering exceptional performance and safety for the operators.
CECHY:
- Cabin Comfort: The FAW tow truck features a spacious and comfortable cabin with a sleeper and air conditioning, ensuring that the operator can work effectively even during long recovery missions.
- Powerful Chassis: With a 4×2 driving configuration, MAN axles, and FAW’s standard cabin, this tow truck boasts a reliable and robust chassis that’s ready for the most challenging tasks.
- Optimal Dimensions: The overall dimensions (8900mm x 2500mm x 2850mm) provide a balanced combination of mobility and functionality, allowing the vehicle to navigate various terrains and access tight spaces when needed.
- Impressive Engine: Equipped with a Dachai CA6DH1-24E61 engine, generating 240HP and adhering to Euro3 emission standards, this tow truck ensures power and efficiency while minimizing environmental impact.
- Smooth Gearbox: The FAST brand manual transmission offers seven forward gears and one reverse, granting the operator precise control during towing operations.
- Reinforced Clutch: The reinforced diaphragm clutch with a diameter of 430mm ensures reliable power transfer and long-term durability, even in demanding recovery scenarios.
- Large Fuel Capacity: The 400L fuel tank allows for extended operations, reducing the need for frequent refueling, and ensuring uninterrupted service during emergencies.
- Rugged Tires: Outfitted with 10.00R20 steel wire tires, including a spare, this tow truck maintains traction and stability on a variety of surfaces.
- Impressive Towing Capacity: With a maximum towing weight of 200,000kg, this tow truck is ready to tackle heavy-duty recovery missions with ease.
- Efficient Lifting System: The tow truck’s lifting system boasts a maximum lifting weight of 50,000kg and a lifting height of 12,000mm. It also includes a versatile lifting arm that extends and retracts up to 6,000mm, with a slope angle of 5-60 degrees, allowing it to adapt to diverse recovery situations.
- Powerful Winch: Featuring a winch with a rated pulling capacity of 25,000kg and a generous 50m steel cable, this tow truck ensures safe and efficient winching operations.
SPECYFIKACJE:
| Kategoria | Dane techniczne |
|---|---|
| Chassis | |
| Cabin | Driving type 4×2 |
| FAW standard Cabin with one sleeper, Air conditioner equipped | |
| Vehicle Main Dimensions | Overall dimensions (Dł. x szer. x wys)mm: 8900 X 2500 X 2850 |
| Rozstaw osi (mm) | 5300 |
| Wheel Track (front/rear) (mm) | 1400/1700 |
| Approach/Departure Angle (°) | 17/20 |
| Weight in KGS | Tare Weight: 13630kg |
| Axle | Front axle: MAN 9000kgs |
| Rear axle: MAN 15000kgs | |
| Maks. Driving Speed (kilometrów na godzinę) | 90 |
| Silnik | |
| Brand | Dachai |
| Model | CA6DH1-24E61 |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling |
| Horsepower (HP) | 240HP |
| Emission Standard | Euro3 |
| Gearbox | |
| Brand | FAST brand |
| Type | Manual Transmission |
| Przenoszenie | 7 forwards & 1 odwracać |
| Clutch | |
| Type | Reinforced diaphragm clutch |
| Diameter | 430mm |
| Fuel Tank | |
| Capacity (L) | 400L |
| Opona | |
| Specification | 10.00R20 Steel wire Tire |
| Quantity | 7 pieces, including one spare tire |
| Wrecker Equipment | |
| Maks. Towing Weight (kg) | 200,000kg |
| Lifting System | |
| Maks. Lifting Weight (kg) | 50,000 |
| Maks. Lifting Height (mm) | 12,000 |
| Extend-Retract of Lifting Arm (mm) | 6,000 |
| Slope Angle of Lifting Arm (°) | 5~60 |
| Winch | |
| Rated Pulling Capacity (kg) | 25,000 |
| Steel Cable | |
| Length (M) | 50 |
| Diameter (mm) | 25 |
