BRIEF

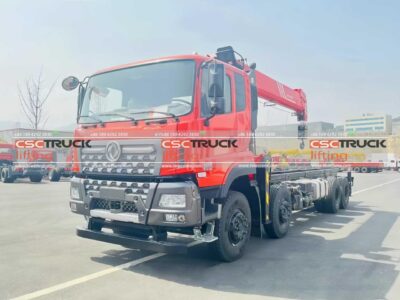

The 12-wheeler, 18-ton truck telescopic crane produced by CSCTRUCK Tow Crane is a robust and versatile heavy-duty vehicle designed for demanding lifting tasks. Built on the reliable Dongfeng chassis, this crane features an 8×4 drive type, ensuring excellent stability and traction across various terrains. The crane has an impressive rated lifting capacity of 18,000 kg at a 2.5-meter radius, making it suitable for a wide range of lifting operations.
With a maximum outreach of 18.6 meters, this telescopic crane offers significant flexibility in handling loads at extended distances. It is equipped with 6 maximum lines of the hook, enhancing its capability to manage heavy and complex lifting tasks efficiently. The crane boasts a full rotation slewing angle, allowing continuous 360-degree movement, which is essential for precise positioning and operational efficiency. The boom can be raised from 0 to 75 degrees, and the maximum lifting height reaches 21.5 meters.
The truck telescopic crane‘s boom consists of 5 sections, with a basic boom length of 6.23 meters and a fully extended length of 19 meters. The outrigger span, when fully extended, measures 7.25 meters, providing excellent stability during lifting operations. The hydraulic system is designed to operate at an optimal pressure of 32 Mpa, with a recommended volume of 100 liters per minute. Additionally, the crane is equipped with a 300-liter oil tank, ensuring sufficient hydraulic fluid capacity for prolonged operations.
Overall, the CSCTRUCK Tow Crane truck telescopic crane on a Dongfeng chassis combines strength, reach, and precision, making it an ideal choice for various industrial and construction applications.
FEATURES
1. High Lifting Capacity and Reach:
– The crane has a rated lifting capacity of 18,000 kg at a 2.5-meter outreach, making it suitable for heavy lifting tasks.
– It features an impressive maximum outreach of 18.6 meters, allowing it to handle operations over extended distances.
2. Advanced Boom Specifications:
– The crane is equipped with a 21.5-meter maximum lifting height and a 19-meter length of the fully extended boom.
– It includes 5 boom sections, with a 6.23-meter length of the basic boom, providing versatile configurations for different lifting needs.
3. Robust and Efficient Hydraulic System:
– The system operates at an optimal pressure of 32 Mpa and a recommended volume of 100 liters per minute, ensuring efficient and powerful performance.
– The crane has a recommended oil tank capacity of 300 liters, supporting extended operational periods without frequent refills.
4. Comprehensive Slewing and Raising Angles:
– The crane offers full rotation with a continuous slewing angle, allowing for flexible and precise positioning.
– It features a boom raising angle range of 0 to 75 degrees, providing adaptability for various lifting scenarios.
5. Stable and Supportive Outriggers:
– The crane is equipped with a fully extended outrigger span of 7.25 meters, enhancing stability during operations.
– These outriggers ensure safe and steady lifting, even with the crane’s significant lifting capacities and extended reach.
SPECIFICATION
| Basic Data | CSCTTC1805 |
| Rated lifting moment | 45 mt |
| Rated lifting capacity | 18,000 kg (2.5 m) |
| Max. outreach | 18.6 m |
| Max. lines of the hook | 6 |
| Slewing angle (continuous) | Full rotation |
| Boom raising angle | 0~75° |
| Max. lifting height (the measurement from the ground after the outriggers are fully extended) | 21.5 m |
| Length of the basic boom | 6.23 m |
| Length of fully extended boom | 19 m |
| Boom sections | 5 |
| Outrigger span (fully extended) | 7.25 m |
| Recommended volume for the system | 100 L/min |
| Operating pressure | 32 Mpa |
| Recommended oil tank capacity | 300 L |
