Brief:

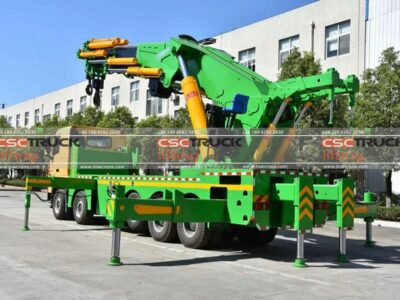

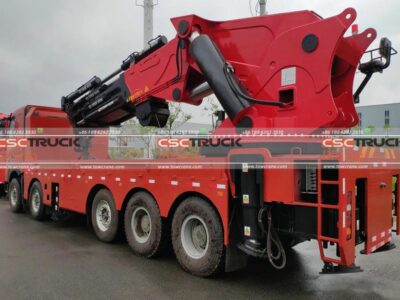

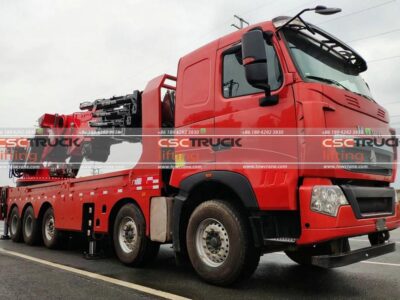

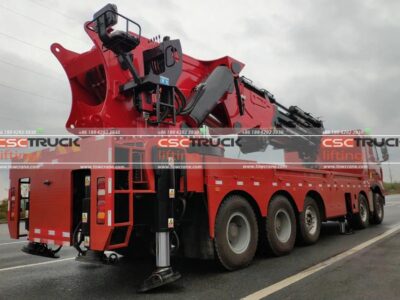

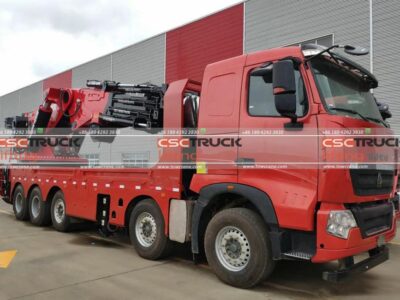

The HOWO 130 Ton Knuckle Boom Folding Crane Truck is a powerful and versatile heavy-duty vehicle designed for demanding lifting and material handling tasks. With its impressive lifting capacity, extensive working range, and advanced safety features, this crane truck is the ideal choice for various industries, including construction, logistics, and more.
Features:
- Model #: SQ5200ZB6 / Knuckle Crane 130ton at 4m
- Max Lifting Moment: 5200 Ton . M
- Max Lifting Capacity:
- 260,000 kg at 2.0m
- 75,000 kg at 6.7m
- 60,000 kg at 8.2m
- 32,000 kg at 14m
- Max Lifting Height: 17.8 meters
- Max Working Radius: 15.3 meters
- Boom Section: 6 stages for enhanced flexibility
- Rotation Angle: Full 360° rotation capability for precise positioning
- Rated Working Pressure: 28 MPa for optimal hydraulic performance
- Capacity: 130 tons, making it suitable for heavy loads
- Driving Height: 3.45 meters for improved visibility
- Outrigger: 4 hydraulic outriggers with adjustable settings for stability during operation
- Crane Weight: 52,000 kg for a balanced and robust design
- Installation Space: 8,000 mm, providing sufficient room for crane setup
- Swing Type: Planetary gear reduction ensures smooth and controlled movement
- Safety Device: Equipped with various safety features, including a Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, and Hook Safety Device
- Options: Additional features available, such as an Aux. Winch, Aux. Boom, and Remote Control, for enhanced functionality
- Material: Constructed with HG785D, a durable and reliable material
- Truck for Reference: Compatible with Dongfeng trucks (customization options available for other truck brands)
- Cabin: Features an 8×4 driving configuration with a Left Hand Drive (Right Hand Drive customization available)
- Color: Optional color choices to suit your preferences
- Vehicle Main Dimensions: Overall Size (L x W x H): 11,950 x 2,500 x 3,800 mm
- Wheel Base: 1,800 + 4,600 + 1,350 mm for stability and load distribution
- Cargo Body: Dimensions of 6,800 x 2,350 x 500 mm for cargo transportation
- Weight in KGS:
- Gross Vehicle Weight (GVW): 31,000 kg
- Tare Weight: 14,500 kg
- Engine: Powered by a diesel engine with the following specifications:
- Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
- Horse Power: 371 HP (273 kW)
- Max Torque: 1,500 N.m
- Max Speed: Capable of reaching speeds of up to 102 km/h
- Gearbox: Manual gearbox with 10 forwards & 2 reverses, equipped with a Power Take-Off (PTO)
- Tire: Outfitted with 12R22.5 tubeless tires, including one spare tire for added convenience. A total of 13 tires provide stability and reliability during transportation and crane operation.
SPECIFICATIONS:
| Item | Unit | Specifications |
|---|---|---|
| Model # | – | SQ5200ZB6 / Knuckle Crane 130ton at 4m |
| Max Lifting Moment | Ton . M | 5200 |
| Max Lifting Capacity | – | – 260,000 kg at 2.0m<br>- 75,000 kg at 6.7m<br>- 60,000 kg at 8.2m<br>- 32,000 kg at 14m |
| Max Lifting Height | M | 17.8 |
| Max Working Radius | M | 15.3 |
| Boom Section | – | 6 stages |
| Rotation Angle | – | 360° All Rotation |
| Rated Working Pressure | MPa | 28 |
| Capacity | t | 130 |
| Driving Height | M | 3.45 |
| Outrigger | – | 4, adjustable, Hydraulic operating |
| Crane Weight | Kg | 52,000 |
| Installation Space | Mm | 8,000 |
| Swing Type | – | Planetary gear reduction |
| Safety Device | – | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device |
| Options | – | Aux. Winch, Aux. Boom, Remote Control |
| Material | – | HG785D |
| Truck for Reference | – | Dongfeng (another truck brand that can be customized) |
| Cabin | – | Driving Type: 8×4, Left Hand Drive (Right Hand Drive Type Can Be Customized) |
| Color | – | Optional |
| Vehicle Main Dimensions | – | Overall Size (L x W x H): 11,950 x 2,500 x 3,800 mm |
| Wheel Base | Mm | 1,800 + 4,600 + 1,350 |
| Cargo Body | Mm | 6,800 x 2,350 x 500 |
| Weight in KGS | – | GVW: 31,000 kg
Tare Weight: 14,500 kg |
| Engine | – | Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power: 371 HP (273 kW) Max Torque: 1,500 N.m Emission Standard: Euro 2, Euro 3, Euro 4, Euro 5 |
| Max Speed | Km/h | 102 |
| Gearbox | – | Manual gearbox with 10 forwards & 2 reverses, with PTO |
| Tire | – | 12R22.5 tubeless tire, 13 pieces including one spare tire |
