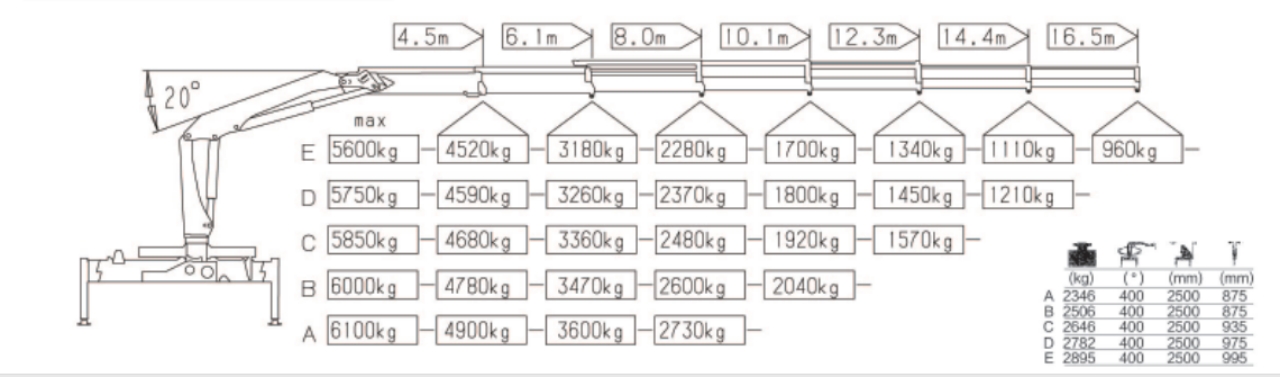

The ISUZU GIGA 6-ton knuckle boom crane, produced by CSCTRUCK Tow Crane, is a robust and versatile vehicle designed for heavy lifting and precision tasks. This crane features a 4×2 drive type, offering reliable traction and stability on various terrains. It is equipped with 2 hydraulic boom extensions, providing a maximum hydraulic outreach of 8.2 meters, which enhances its capability to maneuver and position loads accurately in confined spaces.

With a significant lifting moment of 22.4 metric tons and a maximum lifting capacity of 6,100 kilograms, the ISUZU GIGA knuckle boom crane is well-suited for demanding construction, industrial, and logistical applications. The crane’s slewing mechanism allows a rotation angle of 400 degrees, driven by a slewing torque of 2.8 metric tons, ensuring smooth and precise load handling over a wide operational area.

The crane’s hydraulic system operates at a pressure of 30 Mpa, supported by a pump with a capacity ranging from 50 to 75 liters per minute, ensuring efficient and powerful performance. The crane’s robust construction is reflected in its standard weight of 2,346 kilograms, contributing to its durability and stability during operations.

Overall, the ISUZU GIGA 6-ton knuckle boom crane by CSCTRUCK Tow Crane stands out for its impressive lifting capabilities, extensive outreach, and reliable hydraulic system, making it an essential asset for various heavy-duty lifting tasks. Its power, precision, and versatility make it a preferred choice for professionals in industries requiring efficient load handling and transportation solutions.

   – The crane has a maximum lifting capacity of 6,100 kg and a hydraulic outreach of up to 8.2 meters, allowing it to handle heavy loads at significant distances.

   – Equipped with 2 hydraulic boom extensions and a pump capacity of 50-75 liters per minute, the crane can perform lifting operations efficiently with a maximum operating pressure of 30 Mpa.

   – The crane boasts a 400° slewing angle and a slewing torque of 2.8 mt, providing extensive rotational capability for precise positioning of loads.

   – With a lifting moment of 22.4 metric tons, the crane offers strong lifting power, suitable for a variety of heavy-duty tasks in diverse operational environments.

   – The crane has a standard weight of 2,346 kg, making it a relatively lightweight yet powerful addition to the ISUZU GIGA chassis. This combination ensures efficient operation without compromising on stability or performance.
