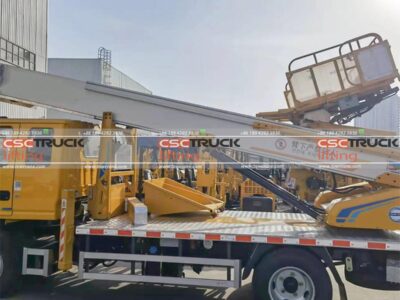

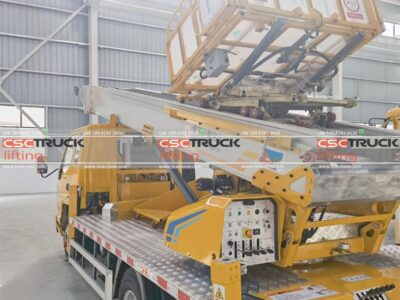

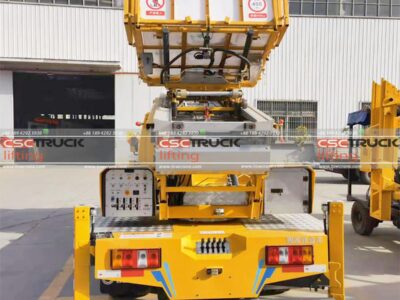

JMC Electric Telescopic Articulated Hydraulic Boom Lift Platform Truck

Summary

The JMC Electric Telescopic Articulated Hydraulic Boom Lift Platform Truck is a cutting-edge vehicle designed to provide efficient and versatile aerial operations. Equipped with advanced features and innovative technologies, this truck is suitable for a range of applications, from maintenance and construction to emergency services. Its robust construction, intelligent control system, and comprehensive safety features make it a reliable and efficient solution for various elevated tasks.

This Boom Lift Platform Truck combines cutting-edge technology, advanced safety features, and innovative design to provide a versatile and efficient solution for various aerial tasks. From maintenance and construction to emergency services, this truck is a reliable asset that ensures safety, convenience, and productivity.

Features

Advanced Aerial Operations:

• The truck offers a flexible working height of up to 32 meters, with a maximum working span of 13 meters, making it suitable for a variety of tasks that require elevated access.
• The articulating boom with 7 sections of high-strength aluminum alloy ladder arms and an auxiliary ladder provides precise positioning in challenging environments.

Intelligent Control System:

• Equipped with an intelligent controller, the truck offers advanced functions such as automatic feeding, automatic deceleration, automatic positioning, and overload alarms, enhancing operational efficiency and safety.

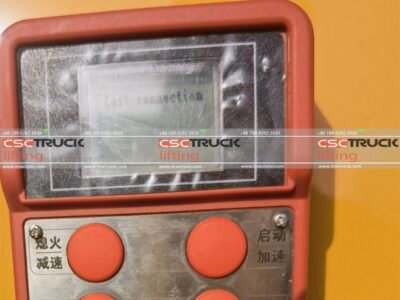

• Full-action wireless remote control allows all loading actions to be performed remotely through a handheld device, ensuring convenient and efficient operation.

Safety First:

• The truck features an interlock system that prevents engine ignition and stopping at the turntable and platform, ensuring safe entry and exit.
• Outrigger warning lights and boom lighting enhance visibility, ensuring safety during night work.
• Bucket overload alarm provides real-time monitoring and alerts, promoting safe operational practices.
• Automatic bucket deceleration at high and low positions prevents sudden movements and ensures smooth material transportation.

Flexible Loading and Unloading:

• The truck’s secondary landing bucket structure enables ultra-low loading positions, enhancing accessibility and efficiency during operations.
• Automatic feeding allows one-button lifting and lowering of the bucket, streamlining material handling processes.
• The automatic unloading feature automatically disengages the hydraulic system when the bucket reaches the set position, preventing overloading and extending the ladder arm’s lifespan.

Innovative Design:

• The truck’s bucket baseplate dimensions, hoarding height, and extendable dimension cater to a variety of loading requirements, ensuring adaptability for different tasks.
• The boom’s ±100° discontinuous rotation feature provides precise positioning, enhancing operational flexibility.

Reliable Chassis and Power:

• The truck is built on the sturdy JMC JX1041TG26 chassis.
• It is equipped with the powerful JMC JX4D30B6H engine with an output of 85KW, ensuring optimal performance during elevated operations.

Efficient Outrigger System:

• The truck’s front V and rear V outrigger design, along with high-strength steel box-type outriggers, ensure stability and reliability during operation.
• The outriggers are fully hydraulically driven both horizontally and vertically, allowing for precise positioning.





Specification	Items
Overall Dimension	length	5995	mm
	width	1960	mm
	height	2850	mm
Weight	weight	4495	kg
	Passengers(including driver)	2	People
Mainly technical datasheet	Bucket rated weight	400	kg
				Bucket max-height	32	m
	Maximum working span	13	m
	Outrigger Lateral span	Front3700/back3830	mm
	Outrigger Longitudinal span	4480	mm
	drive specification	Front/Rear Suspension	1075/1560	mm
Front/rear reach		0/0	mm
Approaching/Departure Angle		20/13
Max. Driving Speed		100	km/h
maximum gradability		30	%
