MUFUPI

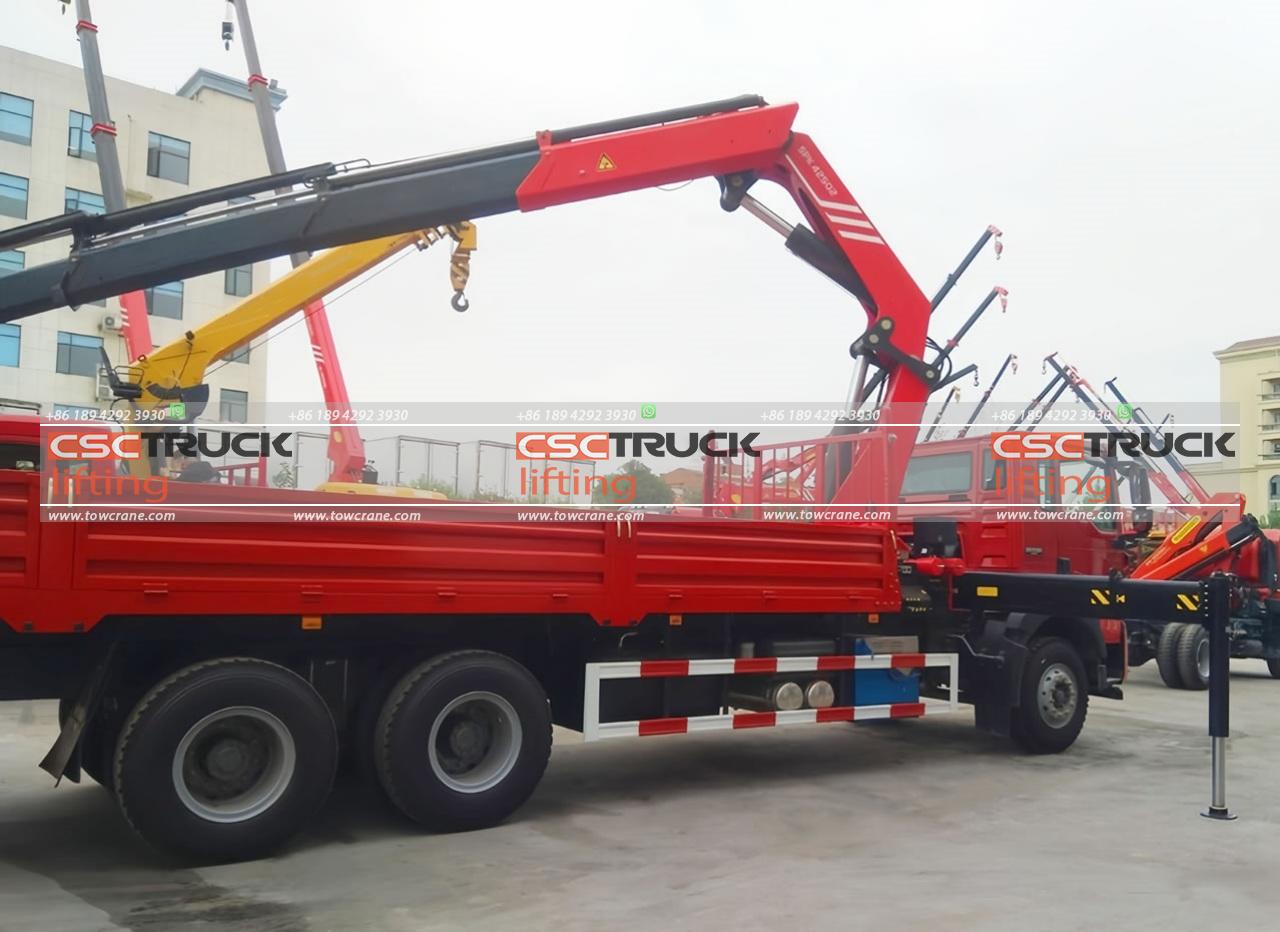

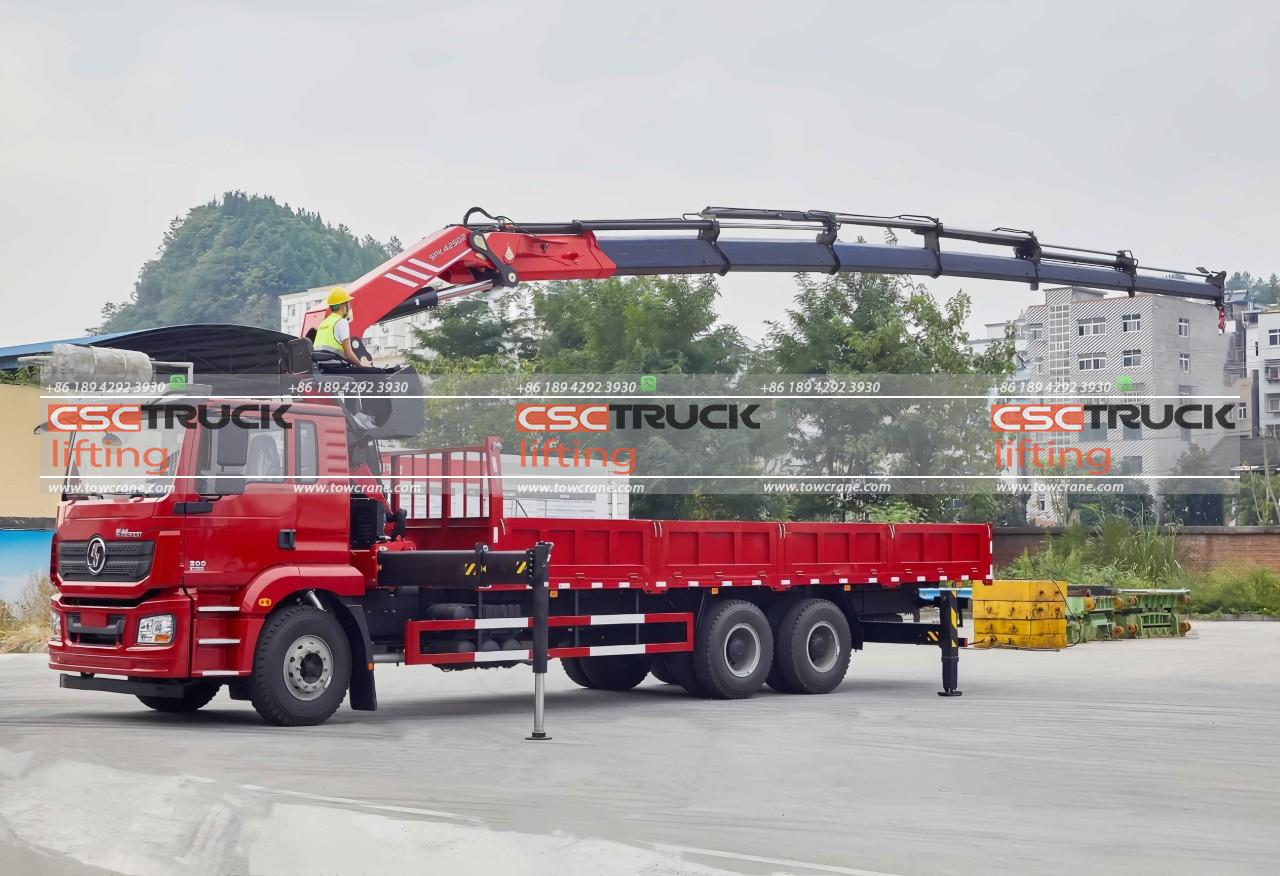

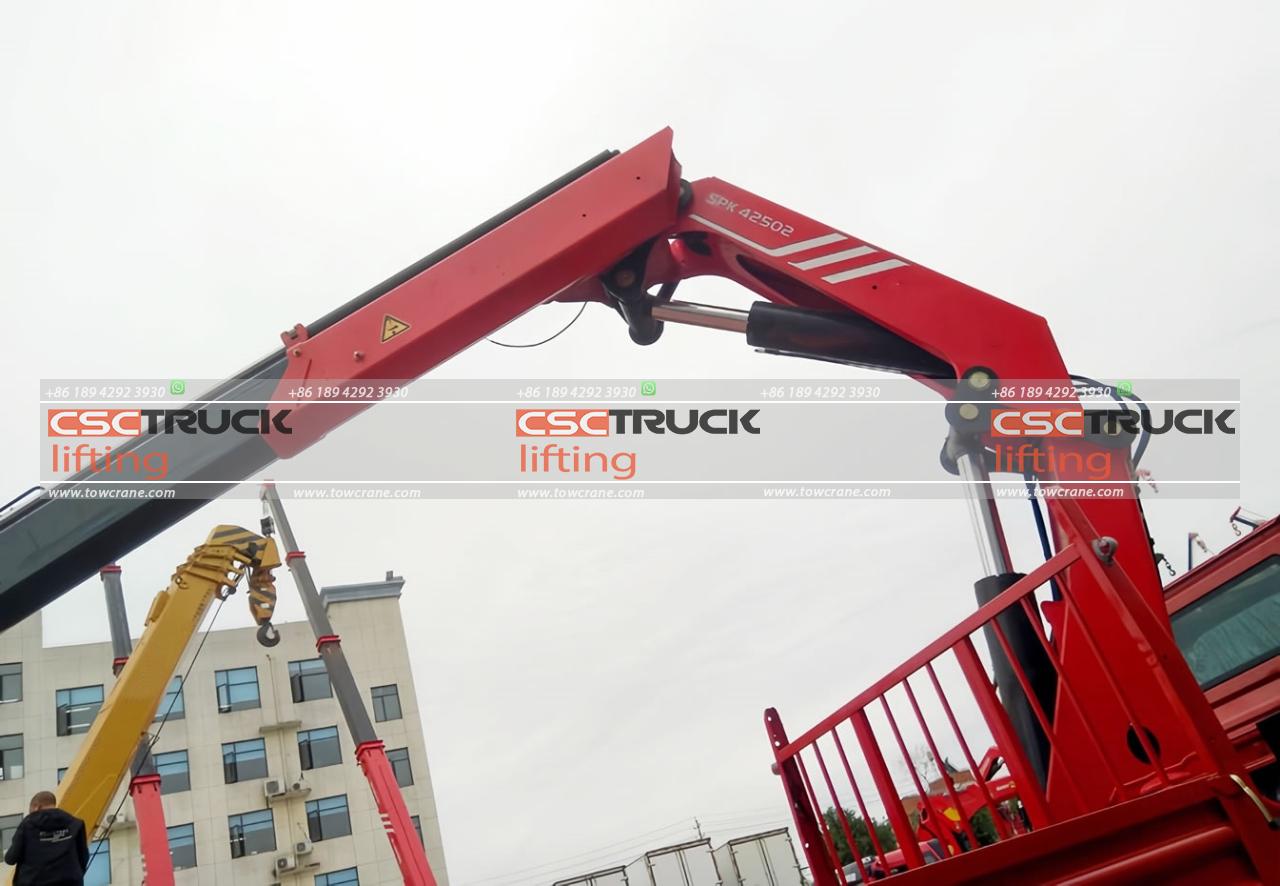

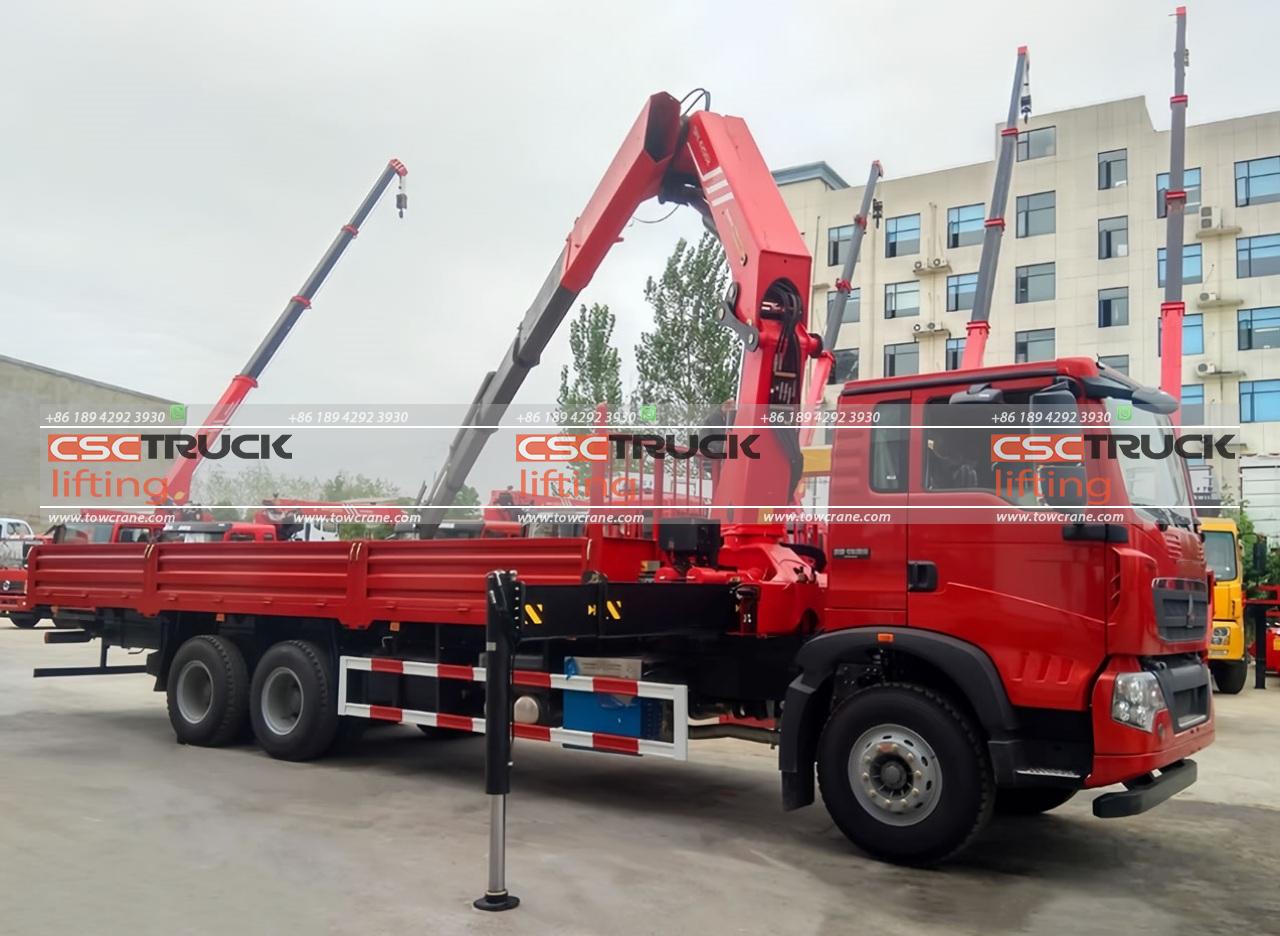

The SHACMAN M3000 15 ton knuckle boom crane, yakagadzirwa ne CSCTRUCK Tow Crane, ndiyo yakasimba uye inoshanda zvakasiyana-siyana yekusimudza mhinduro yakagadzirirwa kurema-basa rekushandisa. This crane is built on a 6×4 drive-type chassis, ensuring excellent traction and stability, which is crucial for operations in various terrains and conditions. Iyo crane inoratidzira 2 hydraulic boom extensions, kupa yakanyanya hydraulic yekusvika ye 8 mamita, allowing it to handle loads at considerable distances easily.
Nenguva yekusimudza ye 42.3 mamita, the SHACMAN M3000 knuckle boom crane can lift heavy loads to 14,300 makirogiramu, making it ideal for a range of industrial and construction tasks. The crane’s 400° slewing angle and 5-meter slewing torque ensure smooth and precise maneuverability, facilitating operations in confined spaces and enhancing overall operational efficiency.
The hydraulic system of the SHACMAN M3000 is equipped with a pump that has a capacity of 60-80 liters per minute and operates at a pressure of 33 Megapascals. This ensures powerful and consistent performance, enabling the crane to handle demanding lifting tasks reliably. The crane itself has a standard weight of 3,970 makirogiramu, which balances durability with maneuverability.
Overall, the SHACMAN M3000 knuckle boom crane kubva CSCTRUCK Tow Crane is a high-performance lifting machine designed for heavy-duty use, combining significant lifting capacity, extensive reach, and precise control to meet the demands of modern industrial and construction projects.
FEATURES
1. Drive Type
– Configuration: 6×4 drive type, providing robust traction and stability on various terrains.
2. Boom Specifications
– Boom Extensions: Equipped with 2 hydraulic boom extensions for enhanced reach and flexibility.
– Maximum Hydraulic Outreach: 8 mamita, allowing for significant horizontal reach for various lifting tasks.
3. Lifting Capacity and Moment
– Maximum Lifting Capacity: 14,300 kg, making it suitable for heavy-duty lifting operations.
– Lifting Moment: 42.3 metric tons, indicating the crane’s powerful lifting capability at various outreach distances.
4. Slewing Specifications
– Slewing Angle: 400°, providing wide operational range and maneuverability.
– Slewing Torque: 5 metric tons, ensuring smooth and controlled rotation of the crane.
5. Hydraulic System
– Pump Capacity: 60-80 marita paminiti, ensuring efficient hydraulic performance.
– Operating Pressure: 33 MPa, indicating a high-pressure system capable of handling demanding tasks.
6. Crane Weight
– Standard Crane Weight: 3,970 kg, allowing for consideration of overall vehicle weight and stability during operation.
KUTAURA
| Item | Unit | CSCKBC42502A | CSCKBC42502B | CSCKBC42502C | CSCKBC42502D | CSCKBC42502E |
| Hydr. boom extensions | / | 2 | 3 | 4 | 5 | 6 |
| Nguva yekusimudza | mt | 42.3 | 42.3 | 42.3 | 42.3 | 42.3 |
| Max. kusimudza simba | kg | 14,300 | 14,000 | 13,820 | 13,140 | 12,570 |
| Max. hydraulic outreach | m | 8 | 10 | 12.1 | 14.5 | 16.8 |
| Slewing angle | ° | 400 | 400 | 400 | 400 | 400 |
| Slewing torque | mt | 5 | 5 | 5 | 5 | 5 |
| Pombi simba | L/min | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Operating pressure | Mpa | 33 | 33 | 33 | 33 | 33 |
| Standard crane uremu | kg | 3,970 | 4,205 | 4,450 | 4,680 | 4,900 |
| Outrigger span(mm) | R3X | 6,600 | 6,600 | 6,600 | 6,600 | 6,600 |
