BRIEF

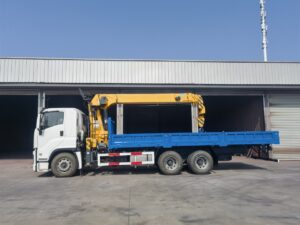

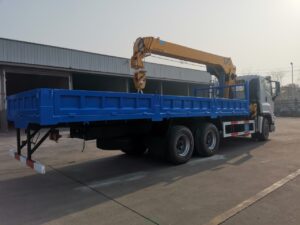

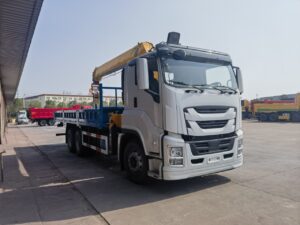

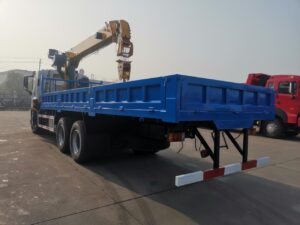

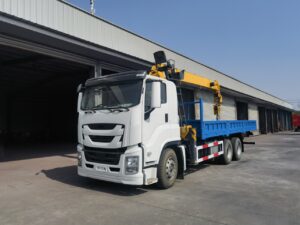

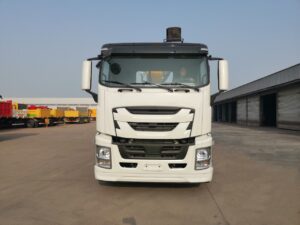

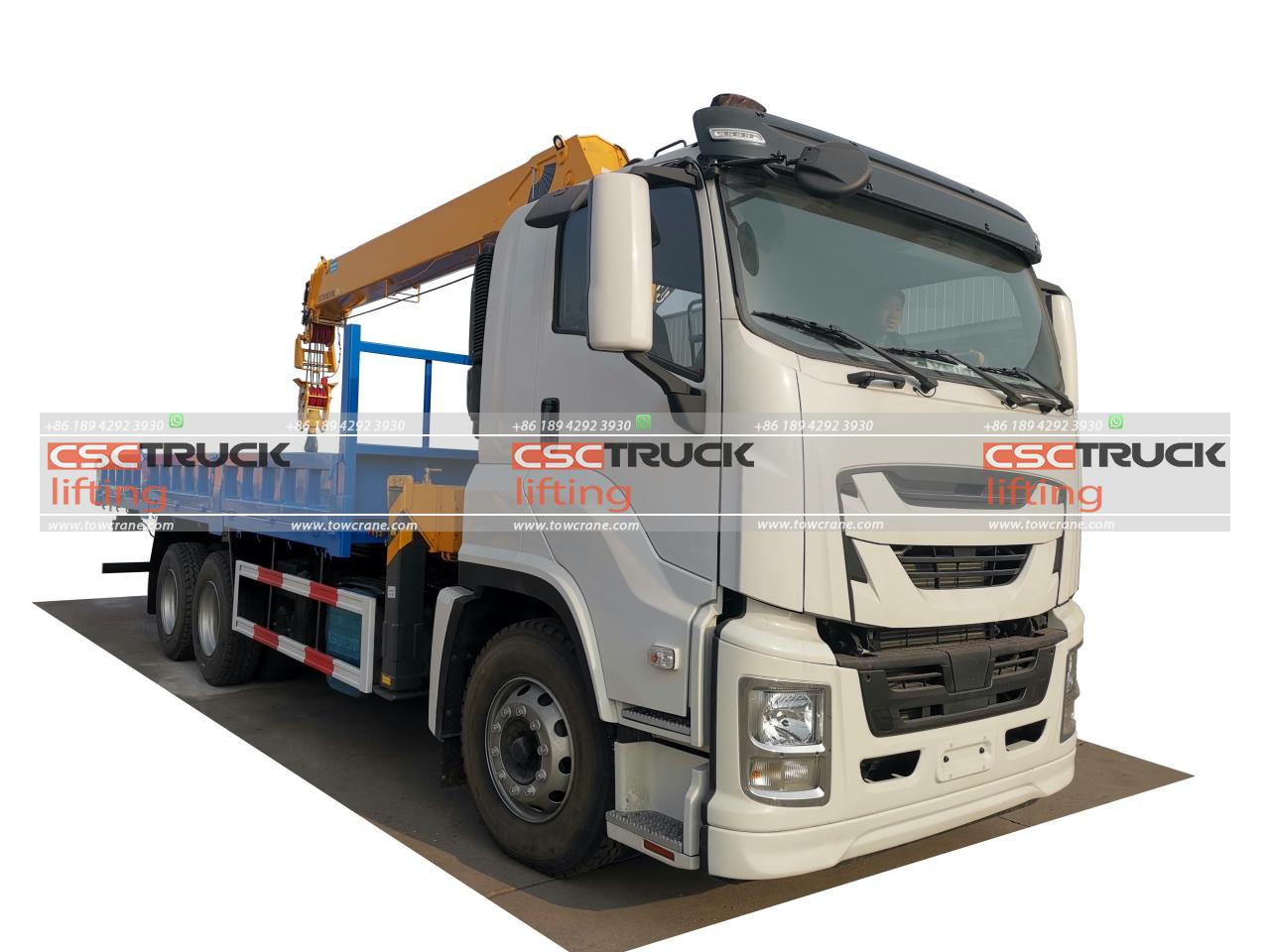

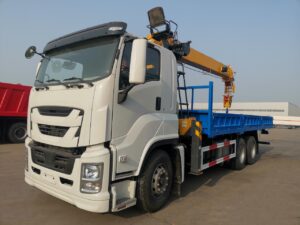

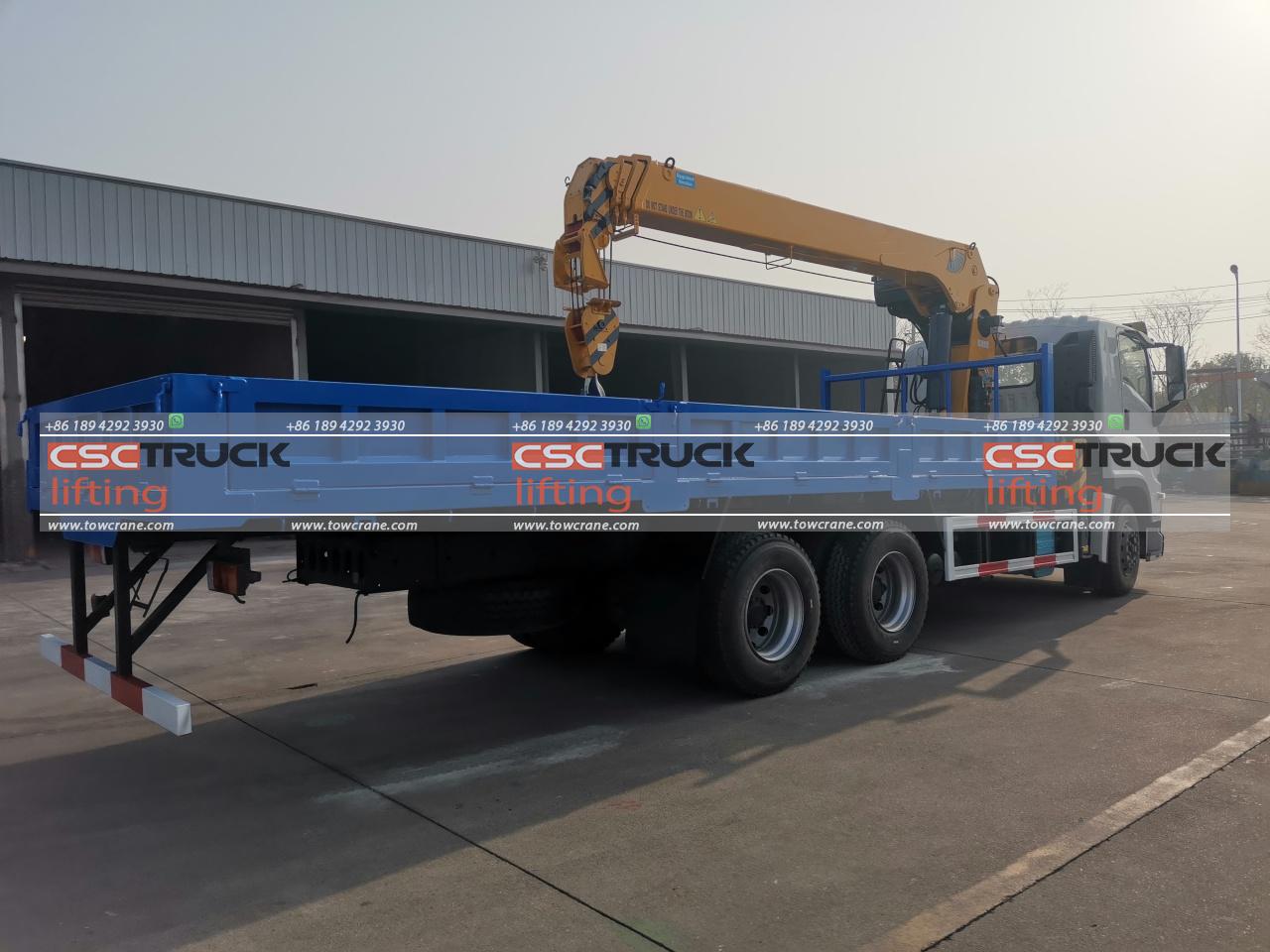

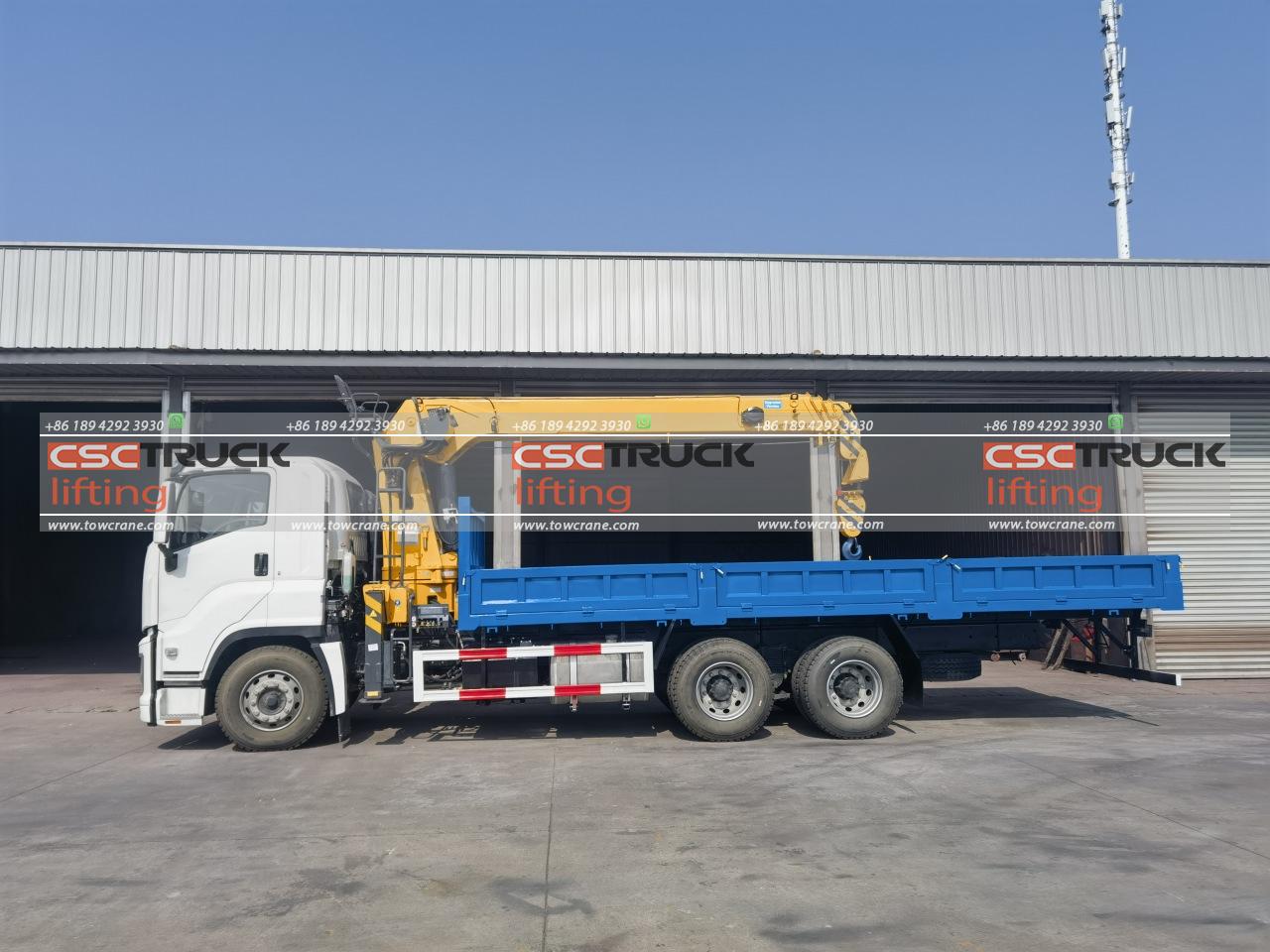

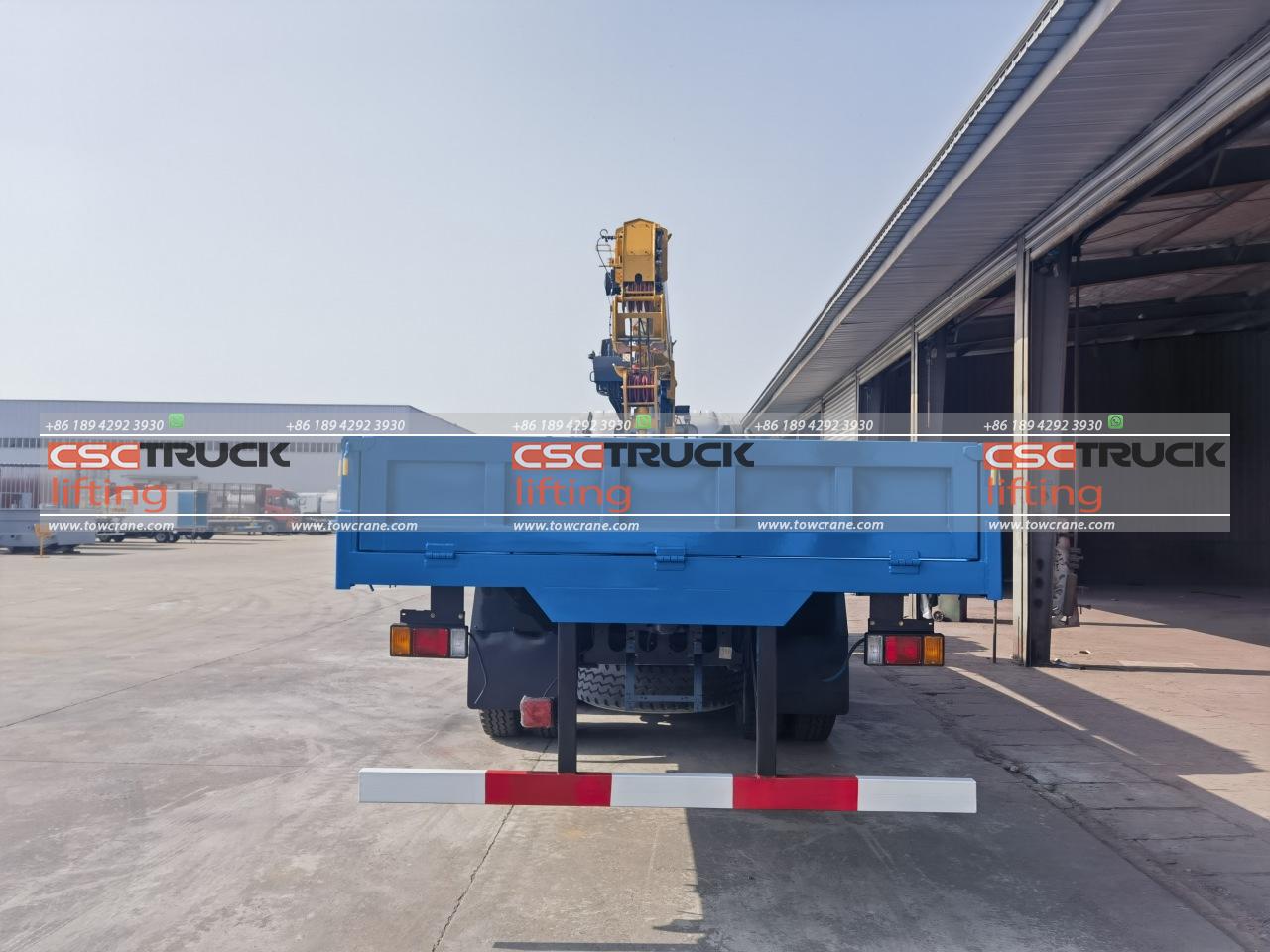

The ISUZU 12-ton truck telescopic crane, manufactured by CSCTRUCK Tow Crane, offers a robust solution for heavy-duty lifting and transportation tasks. Built on the QL5340GXFU2SDZY chassis model, this truck features a 6×4 drive type, ensuring excellent traction and stability across various terrains.
With dimensions of 7.5×2.4×0.45 meters for the cargo box, the truck provides ample space for carrying large loads. The telescopic crane boasts impressive capabilities, with a maximum outreach of 16,500 millimeters and a hook height of 18,000 millimeters, enabling efficient lifting and maneuvering of heavy items.
Equipped with a powerful ISUZU/6UZ1-TCG50 engine, this truck telescopic crane delivers reliable performance, meeting the demands of challenging work environments. The engine generates a maximum torque of 1800N.m@1420rpm, ensuring sufficient power for hauling and lifting operations.
Complying with EURO 3 emission standards, the ISUZU 12-ton truck telescopic crane prioritizes environmental sustainability while maintaining high levels of efficiency and performance. This adherence to emission regulations reflects a commitment to reducing the vehicle’s carbon footprint and minimizing its impact on the environment.
With a crane lifting capacity of 12,000 kilograms at a radius of 2.5 meters, this truck provides substantial lifting power, facilitating the handling of heavy loads with ease. Additionally, its cargo carrier payload capacity of 18,235 kilograms further enhances its utility for transporting various materials and equipment.
Overall, the ISUZU 12-ton truck telescopic crane combines robust construction, powerful performance, and environmental responsibility to offer a versatile solution for industrial and commercial applications. Whether it’s construction, logistics, or infrastructure projects, this truck excels in meeting the demands of heavy lifting and transportation tasks with efficiency and reliability.
FEATURES
1. Robust Construction: The side wall is reinforced by a standing pile, ensuring structural integrity and stability even in demanding conditions. This feature enhances the durability and longevity of the equipment, making it suitable for heavy-duty use.
2. High-Quality Materials: The wall thickness is fabricated from 2mm thick high tensile steel, providing exceptional strength while keeping the overall weight of the equipment optimized. This ensures resistance against wear and tear, contributing to a longer lifespan and reliable performance.
3. Durable Flooring: The floor is fabricated from 5mm thick wear-resistant steel specifically designed for heavy-duty use. This robust construction withstands abrasion and impact, ensuring longevity even in high-traffic environments.
4. Versatile Accessibility: The equipment is designed to open on all sides, offering convenient access from multiple angles. This feature enhances flexibility in loading and unloading operations, making it suitable for various applications and environments.
5. Enhanced Functionality: Equipped with a Power Take-Off (PTO) for external purposes, this equipment offers versatility in its operations. The hydraulic motor driven by worm gear speed reduction enables efficient and precise control, while the continuous 360˚ full circle slewing on the ball bearing slew ring ensures smooth and unrestricted movement. Additionally, the comprehensive safety devices including load meter, load indicator, over-winding alarm, hook safety latch, hydraulic safety valves, check valves, holding valves, level gauge, and anti-2-block device prioritize safety during operation. The control valves feature multi-way control with integral safety valves, enhancing control and reliability, while the provision for switch quantity facilitates easy operation of the vehicle.
SPECIFICATION
ISUZU 12 Ton Truck Telescopic Crane |
||||||||
General Information |
||||||||
| Cab Chassis Make/Model | ISUZU/QL5340GXFU2SDZY | Wheel Drive | 6×4 LHD | |||||
Measurement |
||||||||
| Overall Dimensions(LxWxH) | 10,930×2,530×3,700mm | Front/Rear Overhang | 1,370/3,625mm | |||||
| Front/Rear Track | 2,065/1,855mm | Wheelbase | 4,565+1,370 mm | |||||
| Ground Clearance | 310mm | Cargo Box Size | 7.5×2.4×0.45m | |||||
| Crane Max. Outreach | 16,500mm | Crane Hook Height | 18,000mm | |||||
| Outrigger Extended Width | 5,900mm | Boom Length(retracted) | 5,485mm | |||||
Weights |
||||||||
| Gross Combined Weight(G.C.W) | 36,000kg | Tare /Curb Weight | 15,415kg | |||||
| Gross Vehicle Weight(G.V.W) | 34,000kg | Crane Lifting Weight | 12,000[email protected] | |||||
| Cargo Carrier Payload Weight | 18,235kg | Crane Tare Weight | 4,415kg | |||||
| Front/Rear Axle Rating | 7,000/26,000kg | |||||||
Cab |
||||||||
| Cab Style | Sleeper Cab | Cab Model | VC61 | |||||
| Cab Roof | Standard(low roof) | Cab Width | 2,400mm | |||||
| Construction | Full steel suspended | No. of Seats | 3 | |||||
| Instrument & Controls | Standard | Driver Seats | Airbag | |||||
| Tiltable | Front tiltable | Equipment & Device | AC, power steering | |||||
Engine |
||||||||
| Make/Model | ISUZU/6UZ1-TCG50 | Output Power/Speed | 279kW@2,000rpm | |||||
| Max. Torque / Speed | 1,800N.m@1,420rpm | Displacement | 9.839L | |||||
| Engine Type | Water-cooled, 6 cylinders, 4-stroke, turbocharged, diesel engine. | Emission Regulation | EURO 3 | |||||
Transmission |
||||||||
| Make/Model | FAST12 | Type | Manual | |||||
| Gear Numbers | 12 forward +2 reverse | First Gear Ratio | / | |||||
Wheels |
||||||||
| Wheel Numbers | 10+1 spare tire | Tires | 315/80R22.5 20PR | |||||
Crane |
||||||||
| Make/Model | SQS300 | Max Lifting Capacity | 12,000[email protected] | |||||
| Max. Lifting Moment | 30 T.M | Recommend Power | 45 kW | |||||
| Oil Flow of Hydraulic System | 80+32 L/min | Pressure of Hydraulic | 26 Mpa | |||||
| Oil Tank Capacity | 200 L | Install Space | 1,300 mm | |||||
| Rotation Angle | 360º all rotation | Max Lifting Height | 18 m | |||||
| Working Radius | 16.5 m | |||||||
Cargo Box |
||||||||
| Model/Model | 08CB/CSCTRUCK | Side Wall | 2mm high tensile steel | |||||
| Floor/Platform | 5mm Wear Resistant Steel | Door | All side open | |||||
