BRIEF

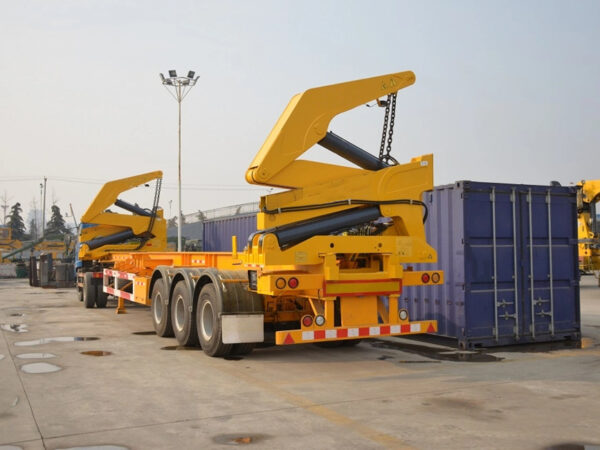

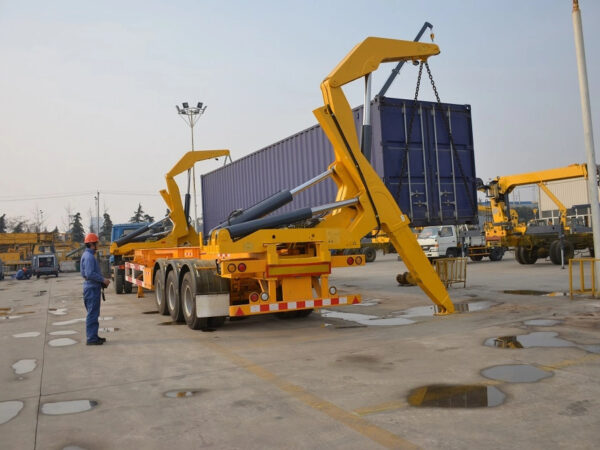

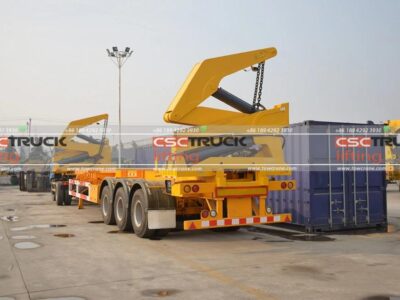

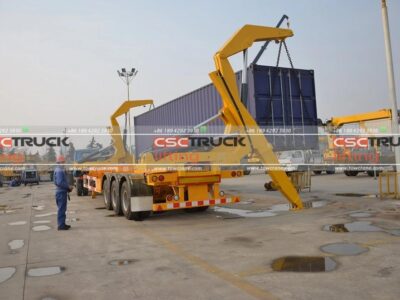

The 37-Ton Container Semi Trailer with Side Lifter Crane is a self-loading container transport solution that combines a heavy-duty 3-axle semi-trailer with an integrated MQH37A side lifter crane. Designed for ports, inland container depots, rail yards, construction sites, and logistics hubs, it can independently load and unload standard 20-foot and 40-foot containers without relying on external lifting equipment such as reach stackers or gantry cranes. With a 37,000 kg maximum lifting capacity, 4,000 mm working range, and 3,200 mm stabilizer outreach, the trailer provides a flexible and efficient solution for container transportation and handling.

Built for heavy-duty container operations, the trailer features three FUWA 13-ton axles, 12 × 12R22.5 vacuum tires, and JOST 28-ton landing gear, providing a stable foundation for both road transportation and container loading operations. The MQH37A side lifter crane delivers up to 37,000 kg of lifting capacity and a 4,000 mm working range, while the 3,200 mm stabilizer outreach helps maintain stability during side loading and unloading. The side lifter weighs approximately 7,250 kg, while the trailer measures 14,100 × 2,500 × 4,000 mm. A 2.0-inch (50#) kingpin and 8,000 + 1,350 + 1,350 mm wheelbase provide reliable coupling and towing performance.

Designed to combine container transportation and self-loading capability, this side lifter trailer reduces dependence on external handling equipment at destinations where cranes or reach stackers may not be readily available. Its robust chassis, heavy-duty axles, JOST landing gear, and anti-corrosion treatment make it suitable for demanding logistics operations, including ports, inland container yards, industrial facilities, and construction sites. For container transport companies, logistics operators, and freight contractors, the trailer provides greater operational independence while helping reduce equipment rental, handling delays, and overall container handling costs.

---

FEATURES

Self-Loading Container Transport – No External Crane Required

The integrated MQH37A side lifter crane allows the trailer to load and unload containers independently, reducing reliance on reach stackers, gantry cranes, or mobile lifting equipment.

37,000 kg Maximum Lifting Capacity

With a maximum lifting capacity of 37 tons, the side lifter is designed to handle heavy 20-foot and 40-foot containers for demanding transport and handling applications.

4,000 mm Working Range

The crane provides a 4,000 mm working range, allowing containers to be positioned efficiently beside the trailer during loading and unloading.

3,200 mm Stabilizer Outreach

The stabilizer system extends up to 3,200 mm, providing a stable working platform during container lifting and placement.

Heavy-Duty FUWA 13-Ton Axles

Equipped with three FUWA 13-ton axles, the trailer offers reliable load support and durability for frequent heavy-duty container transportation.

12R22.5 Vacuum Tires

The 12 × 12R22.5 vacuum tires provide dependable road grip, load-bearing performance, and durability for both highway transportation and yard operations.

JOST 28-Ton Landing Gear

Two JOST 28-ton landing gears provide stable support when the trailer is uncoupled from the tractor, particularly during container loading and unloading.

Anti-Corrosion Protection

A comprehensive anti-corrosion treatment helps protect the trailer and crane structure against moisture and harsh operating conditions, making it suitable for coastal ports and high-humidity environments.

2.0-Inch (50#) Kingpin

The heavy-duty 2.0-inch (50#) kingpin provides a secure connection between the semi-trailer and compatible tractor units for reliable road transportation.

20-Foot and 40-Foot Container Compatibility

The trailer is designed to transport standard 20-foot and 40-foot ISO containers, providing greater flexibility for different cargo and logistics requirements.

Reduced Dependence on External Handling Equipment

By combining transportation and side-loading capabilities in one unit, the trailer can reduce the need for separate container-handling equipment and minimize waiting time at locations without fixed lifting infrastructure.

---

SPECIFICATION

Parameter	Specification
Crane Model	MQH37A
Max Lifting Capacity	37,000 KG
Max Working Range	4,000 mm
Max Stabilizer Outreach	3,200 mm
Mass of Side Lifter	7,250 kg
Trailer Dimensions	14,100 × 2,500 × 4,000 mm
Crane Dimensions	1,020 × 2,500 × 2,490 mm
Axle of Trailer	FUWA 13T × 3 Axles
Trailer Tires	12R22.5 Vacuum Tires, 12 Units
Landing Gear	JOST 28T × 2
Traction Pin	2.0” (50#)
Wheelbase	8,000+1,350+1,350 mm
Anti-Rust Treatment	Complete Truck has Anti-Rust Treatment
