SUMMARY

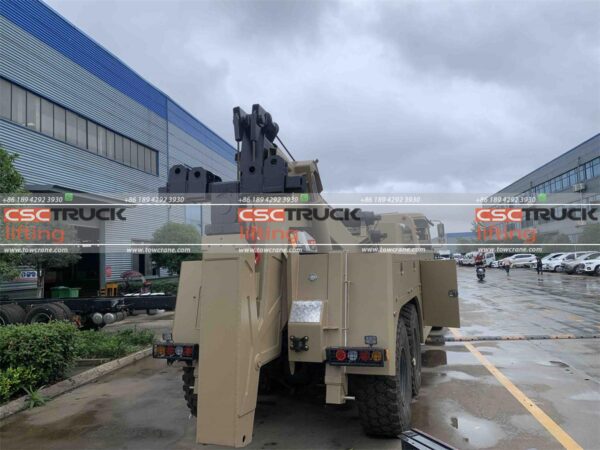

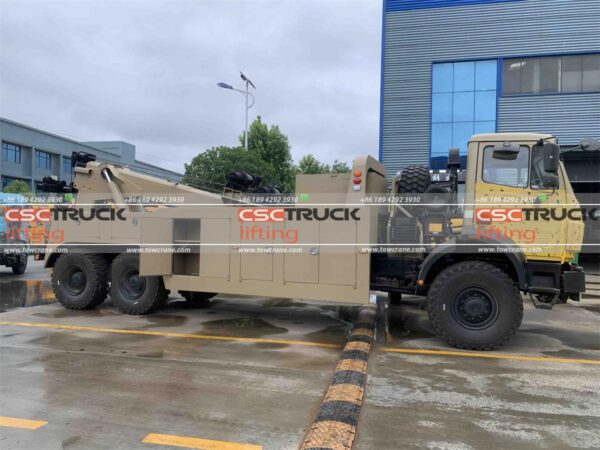

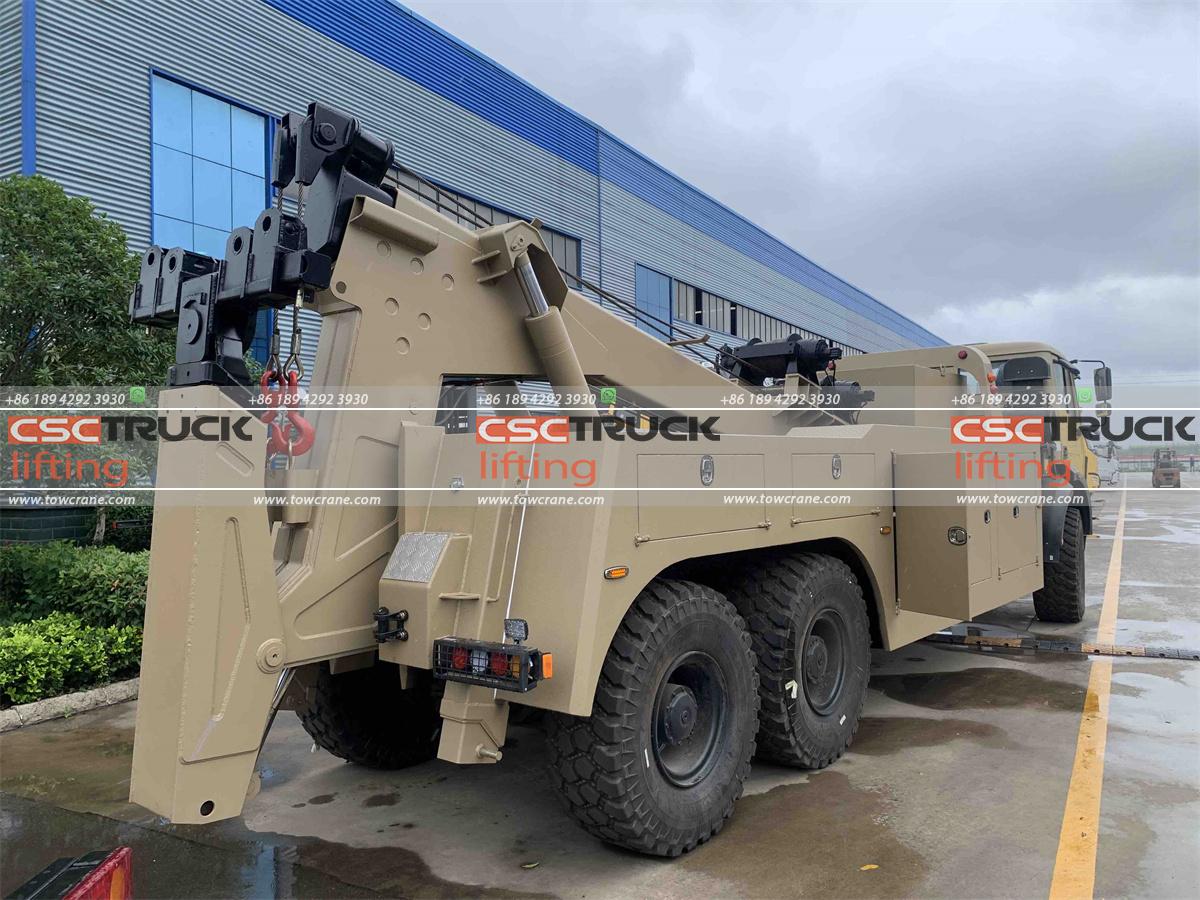

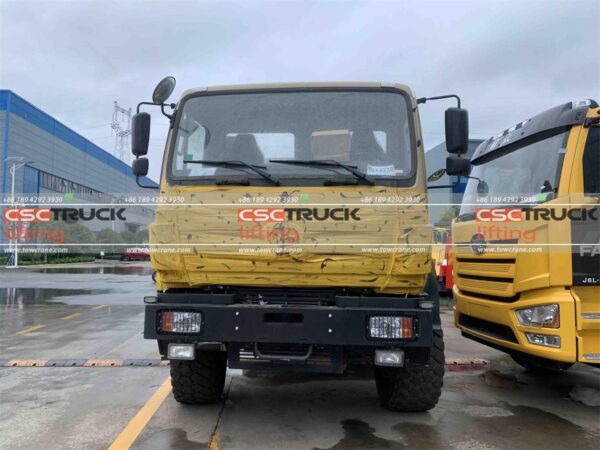

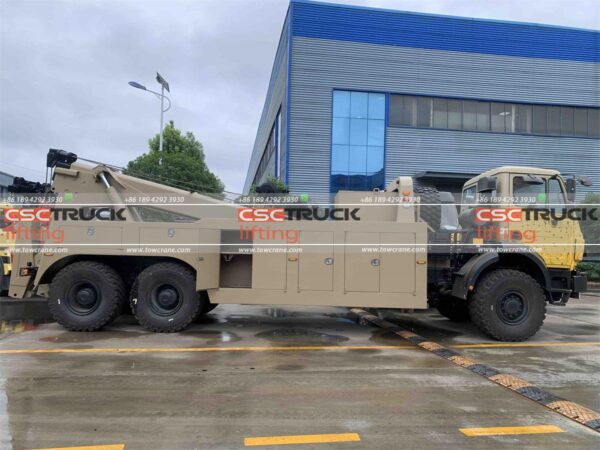

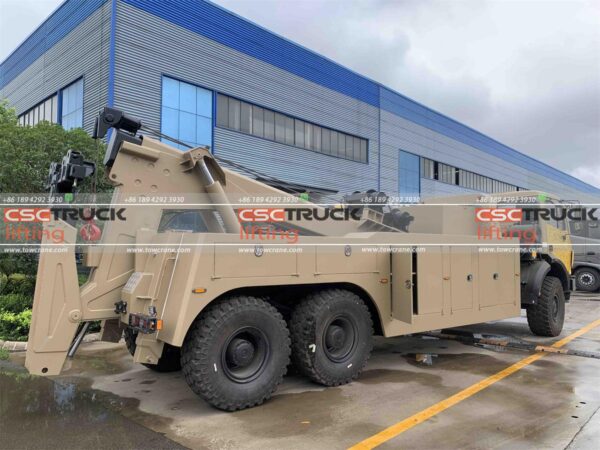

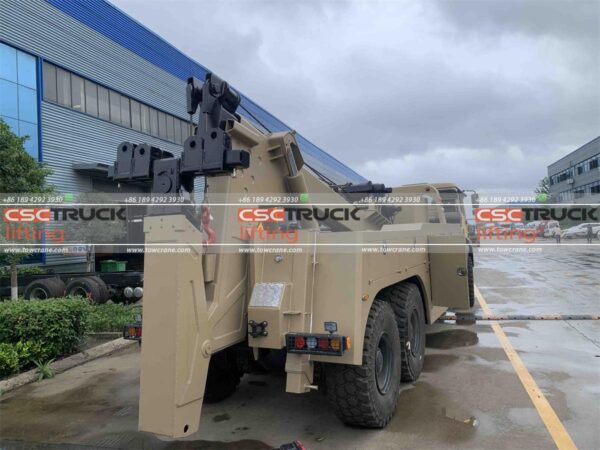

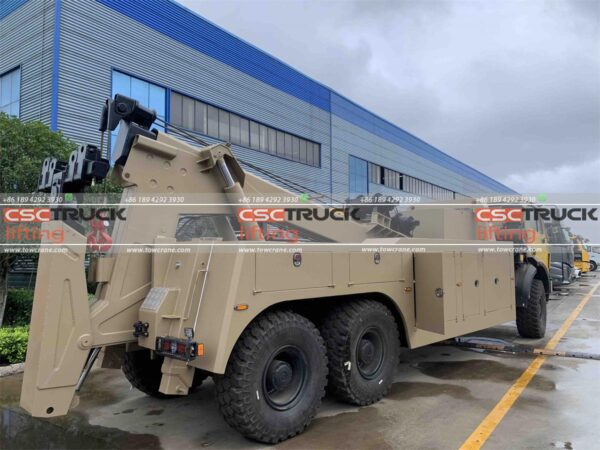

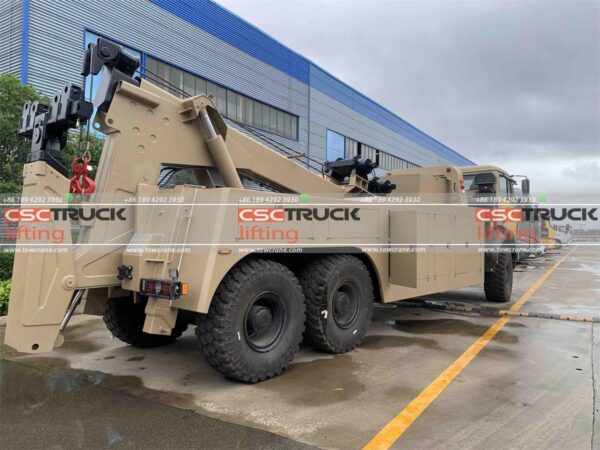

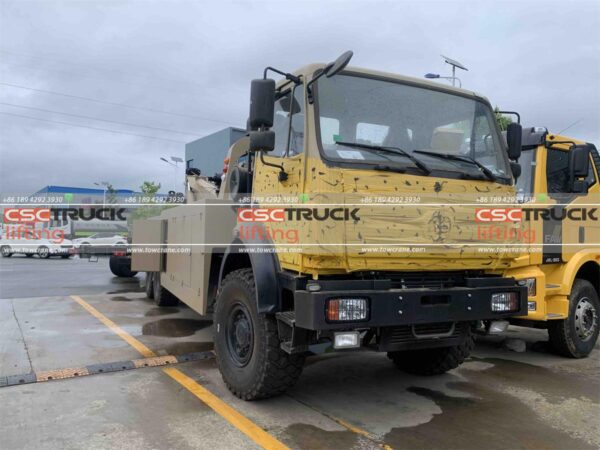

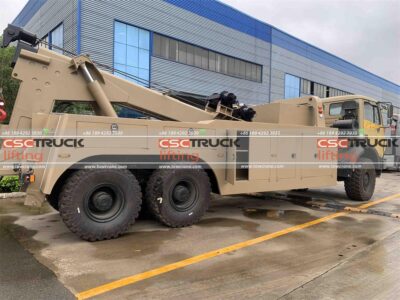

The BEIBEN 35Ton Integrated Tow Truck with Side Puller presents a remarkable fusion of power, versatility, and advanced technology. Designed to excel in various towing scenarios, its specifications and features underscore its commitment to efficiency and performance. From a robust engine to advanced suspension systems, this tow truck is primed to tackle challenges with precision and power.
The tow truck‘s features collectively exemplify its dedication to performance, functionality, and versatility. It stands as a dependable partner for towing operations across a spectrum of scenarios, showcasing innovation and excellence in the towing industry.
FEATURES
These Integrated Tow Trucks‘ impressive features span multiple categories, each contributing to their exceptional performance:
Powerful Engine and Performance:
- Engine: A robust six-cylinder, turbocharged Diesel engine from Weichai Power Technology.
- Output: Generates 250Kw (340HP) at 2200rpm and 1250Nm of torque at 1400-1600rpm.
- Emission Standard: Complies with Euro 3 for an environmentally friendly operation.
Mechanical Excellence and Handling:
- Gearbox: Fuller Eaton technology provides 9 forward gears and 1-speed reverse, equipped with synchronizers for smooth transitions.
- Steering System: ZF Technology-designed system for precise control and handling.
- Suspension: Benz Technology’s circulation ball, hydraulic boosting suspension system with shock absorbers and stabilizer bar for a comfortable ride.
Advanced Chassis and Suspension:
- Chassis: Constructed with a robust fish-belly-shaped frame with variable width.
- Suspension: Non-free standing 13 pcs leaf spring suspension on both front and rear for optimal load distribution and ride comfort.
Wrecker Body and Capabilities:
- Wrecker Body: Equipped with a mechanical body for efficient functionality.
- Underlift: Offers a 16-ton fully retracted and a 6.8-ton fully extended capacity.
- Boom System: Advanced boom system with 35-ton retracted and 15-ton extended ratings, featuring maximum angles of 41° for precision.
Winches and Pulling Power:
- Winches: Two planetary winches with a 17.5-ton rating of pulling force each.
- Construction: Ductile casting casing with hub redactor for durability and reliability.
- Cable: 19 mm by 60 m cable for secure grip on heavy loads.
Enhanced Functionality and Safety:
- Side Puller: X-shaped side puller for added control and stability.
- Hydraulic Pivoting Stiff-Leg: Integrated technology for precise maneuvering and positioning.
- Winches: Two 15-ton winches provide versatility and reliability in complex towing situations.
SPECIFICATIONS
| Item | Specification |
|---|---|
| Measurements | |
| Wheelbase | 4,450+1,450 mm |
| Overall Size | 9,840×2,495×3,260 mm |
| Front/Rear Overhang | 1,435mm/2,505mm |
| Tare Weight | 17,000kg |
| GVW | 33,000kg |
| Engine | |
| Make/Model | WEICHAI/WP10.340E32 |
| Type | 6 cylinders, turbocharged Diesel |
| Rated Power/Speed | 250kW(340HP)/2,200rpm |
| Output Torque/speed | 1,250N.m/1,400‑1,600rpm |
| Displacement | 9.726L |
| Emission Standard | EURO III |
| Fuel tank capacity | 400L Iron |
| Clutch | |
| Make/Model | 430 mm, Single dry, Hydraulic boosting |
| Gearbox | |
| Make/Model | FAST/9JS150A |
| Type | Mechanical |
| Gear Numbers | 9 Forward, 1‑speed reverse |
| Synchronizer | Equipped |
| PTO | QH50, Flange, Side‑mounted |
| Steering System | |
| Make/Model | ZF/8098 |
| Type | Circulation ball, hydraulic boosting |
| Suspension System | |
| Front/Rear Suspension | Non‑freestanding 13 pcs leaf spring, Shock absorber with stabilizer bar |
| Chassis Frame | Fish belly shape, variable width |
| Cross‑Sectional | 317×70×8.5+7+8.5 mm |
| Axle | |
| Front Axle Type | Double‑shoe pneumatic brake, steering axle |
| Front Axle Rating | 7.5 ton |
| Rear Axle Type | Double‑shoe pneumatic brake, ductile casting casing with hub redactor, double reduction driving axle |
| Rear Axle Rating | 2×13 ton |
| Rear Axle Ratio | 5.263 |
| Electrical system | |
| Battery | 2×12V/165Ah |
| Generator | 28V‑70A |
| Starter | 5.58Kw/24V |
| Brake System | |
| Service brake | Auto‑adjusted, dual‑air brake |
| Assistant brake | Engine exhaust brake |
| Park brake | Spring energy on all wheels |
| Cab | |
| Make/Model | BEIBEN/NG80B |
| Type | Day, short cab with inner A/C |
| Construction | Full steel, covered 2‑layer steel |
| Tipped forwardly | Yes |
| Interior | Integral interior, instrument, Digital instrument (radio, USB, MP3) |
| Seats | High/shock absorption, driver |
| Steering wheel | Adjustable, Right‑hand drive |
| Exterior | Steel bumper, 3 steps, Sunvisor |
| Underlift | |
| Fully Retracted | 16 ton |
| Retracted Distance | 2135 mm |
| Fully Extended | 6.8 ton |
| Extended Distance | 3773 mm |
| Tilt Angle | -13° / 20° |
| Tow Rating | 36 ton |
| Boom | |
| Boom Rating Retracted | 35 ton |
| Boom Rating Extended | 15 ton |
| Maximum Angle | 41° |
| Hook Height | 5117 mm |
| Reach Past Tailboard | 1853 mm (73″) |
| Winch | |
| Winch Quantity | 2 pcs |
| Rating Pulling Force | 17.5 ton |
| Winch Type | Planetary |
| Cable Length | 19 mm × 60 m |
| X-shape side puller | |
| Type | Hydraulic Pivoting Stiff‑Leg |
| Winches | 2 nos of 15‑ton Winches |
