BRIEF

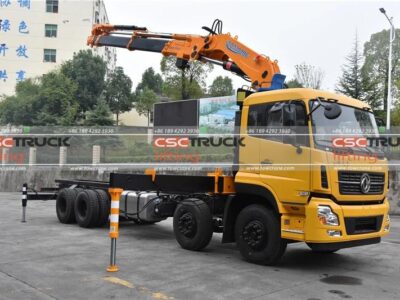

The DONGFENG 16-Ton Knuckle Boom Truck Mounted Crane is a heavy-duty lifting and transportation vehicle equipped with the SQ330ZB4 knuckle boom crane and a robust DONGFENG 8×4 chassis. Combining powerful lifting equipment with a large cargo platform, it is designed to handle heavy machinery, construction materials, industrial equipment, and other loads that require on-site lifting and transportation.

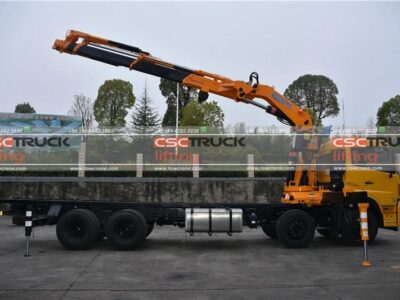

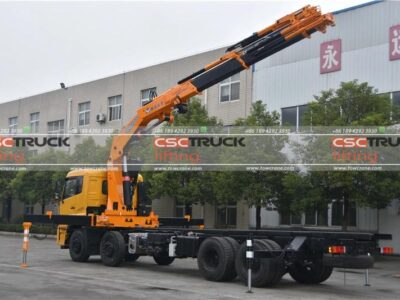

The SQ330ZB4 crane delivers a maximum lifting moment of 330 kN·m and a lifting capacity of up to 10,650 kg at 3 meters. Its four-section boom provides a maximum working radius of 11.4 meters and a lifting height of 13.8 meters, while the 360° rotation system allows flexible load positioning around the truck. Four hydraulic outriggers provide stable support during lifting operations.

The Knuckle Boom Truck Mounted Crane combines lifting, loading, transportation, and unloading in one vehicle, reducing the need for separate handling equipment at the job site. With its 240 HP Euro V diesel engine, 25-ton GVW, high-strength crane structure, and comprehensive safety system, it is suitable for construction, infrastructure projects, industrial material handling, logistics, and equipment transportation.

FEATURES

DONGFENG 8×4 Chassis & Power System

• DONGFENG 8×4 heavy-duty chassis – provides strong load-carrying capacity and stable performance for lifting and transportation.
• 240 HP diesel engine – delivers reliable power for heavy-load transportation and crane operation.
• 1,000 N·m maximum torque – provides strong traction under demanding working conditions.
• 9-speed manual gearbox with PTO – ensures efficient power transmission and supplies hydraulic power to the crane.
• Euro V emission standard – meets modern emission requirements for cleaner operation.

SQ330ZB4 16-Ton Knuckle Boom Crane

• SQ330ZB4 16-ton knuckle boom crane – provides powerful lifting performance with flexible load handling.
• 330 kN·m maximum lifting moment – supports demanding lifting and material handling operations.
• 4-section telescopic boom – provides extended reach and flexible load positioning.
• 13.8-meter maximum lifting height – suitable for high-level loading and lifting applications.
• 11.4-meter maximum working radius – provides a wide operating range around the truck.
• HG785D high-strength steel construction – enhances boom strength and durability.

360° Rotation & Hydraulic Operation

• 360° all-around rotation – allows flexible positioning of loads without frequently repositioning the truck.
• Planetary gear reduction system – provides smooth and controlled crane slewing.
• 28 MPa hydraulic working pressure – provides sufficient power for demanding lifting operations.
• 60 L/min hydraulic oil flow – supports responsive and efficient crane movements.
• 120-liter hydraulic oil tank – provides adequate oil capacity for continuous crane operation.

Hydraulic Outriggers & Stable Support

• Four hydraulic-operated outriggers – provide a stable working platform during lifting.
• Adjustable outrigger span of 2,330–7,100 mm – adapts the support footprint to different working conditions.
• Wide support base – improves stability when lifting heavy loads at extended boom positions.
• Hydraulic adjustment – allows convenient deployment and positioning of the outriggers.

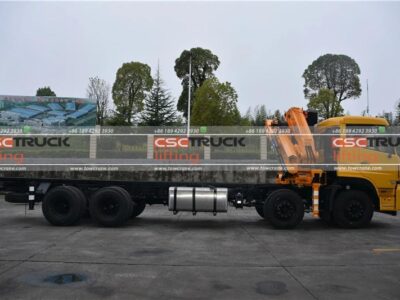

Large Cargo Platform for Transportation

• 8.4-meter cargo body – provides ample loading space for machinery, equipment, construction materials, and other heavy cargo.
• 550 mm cargo body height – provides a practical platform for securing and transporting different loads.
• Integrated crane and cargo body – combines lifting and transportation functions in one vehicle.
• 25-ton GVW chassis – provides sufficient capacity for heavy cargo transportation and crane operations.

Comprehensive Safety & Optional Equipment

• Load indicator – helps operators monitor lifting conditions during crane operation.
• Hydraulic safety and counterbalance valves – improve hydraulic control and operational safety.
• Automatic swing brake – helps maintain stable boom positioning during operation.
• Hook safety device – provides additional protection during load handling.
• Optional auxiliary winch, auxiliary boom, and remote control – allow the crane to be configured for different lifting requirements.
